product model |
parameter |
Product
Picture |
specifications |
price
(USD/set) |
| ZT-STU-A15(15dBi) |
1.Radome Material:ABS
2.Size:1200*280*90 mm
3.Weight:9.5kg
4.Package size:1250*320*220 mm
5.Standard protocol:ISO 18000-6C
6.Working frequency:902-928MHz OR 865-868MHz
7.Band width:26MHz(902-928MHz)
8.Gain:15dBi
9.Beam width E-Plane:16°
10.Beam width H-Plane:65°
11.VSWR:≤1.5
12.F/B:>25dB
13.Polarization:Linear polarization
14.Max power:100W
15.Impedance:50Ω
16.Radome Material:Fiberglass
17.Connector:N-female or user specified |
|
Gaina: 15dBi
Polarization: Linear polarization |
92.00 |
| ZT-STU-A12(12dBi) |
1.Radome Material:ABS
2.Antenna Size:445×445×40mm
3.Weight:4.5kg
4.Standard protocol:ISO 18000-6C
5.Frequency range:
902-928MHz; 865-868MHz
6.Band width:
26MHz（902-928MHz）; 3MHz（865-868MHz）
7.Gain:12dBi
8.Beam width E-Plane:38°
9.Beam width H-Plane:40°
10:VSWR:≤1.4
11.F/B:>25dB
12.Polarization:Linear Polarization
13.Max power:100W
14.Impedance:50Ω
15.Connector:N-female or user specific |
|
Gaina: 12dBi
Polarization: Linear polarization |
62.00 |

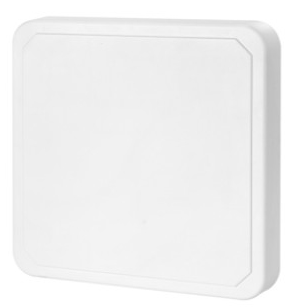

| ZT-STU-A9(9dBi) |
1.Radome Material:ABS
2.Size:260*260*60 mm
3.Weight:2kg
4.Package size:330*320*100 mm
5.Standard protocol:ISO 18000-6C
6.Working frequency:902-928MHz
7.Band width:26MHz(902-928MHz)
8.Gain:9dBi
9.Beam width E-Plane:70°
10.Beam width H-Plane:70°
11.VSWR:≤1.5
12.F/B:>25dB
13.Polarization:Circular polarization
14.Max power:100W
15.Impedance:50Ω
16.Connector:N-female (customized)
17.Application:used for terminals, parking lots,
shopping malls and toll stations
18.Characteristic:good environmental
adaptability, easy installation |
|
Gain:9dBi
Polarization:Circular polarization |
53.00 |

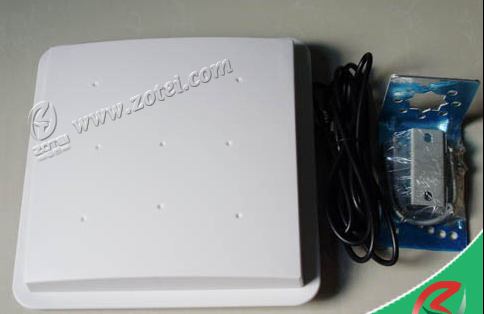

| ZT-STU-A8(8dBi) |
1.Radome Material:ABS
2.Antenna Size:280×280×40mm
3.Packaging Size:450×350×150mm
4.Weight:2.3kg
5.Standard protocol:ISO 18000-6C
6.Frequency range:
902-928MHz; 865-868MHz
7.Band width:
26MHz（902-928MHz）; 3MHz（865-868MHz）
8.Gain:8dBi
9.Beam width E-Plane:68°
10.Beam width H-Plane:65°
11.VSWR:≤1.3
12.F/B:>25dB
13.Polarization:Circular polarization
14.Max power:100W
15.Impedance:50Ω
16.Connector:N-female or user specific
17.Application:Radio-frequency reader antenna,
used for terminals, parking lots, shopping malls,
toll station.
18.Characteristic:Pleasing in appearance,
environmental adaptability, easy installation |
|
Gain:8dBi
Polarization:Circular polarization |
41.00 |

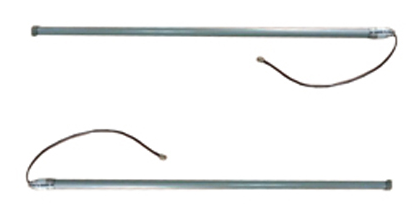

| ZT-STU-A7(7dBi) |
1.Radome material:fiberglass
2.Size:￠26×1000mm
3.Weight:
4.Standard protocol:ISO 18000-6C
5.Working frequency:902-928MHz
6.Band width:26MHz(902-928MHz)
7.Gain:7dBi
8.Electronic inclination angle:0°
9.Horizontal Beamwidth:360°
10.VSWR:≤1.5
11.F/B:≥22dB
12.Polarization:Vertical polarization
13.Max power:100W
14.Impedance:50Ω
15.Connector:N-J
16.Anti-thunder Protection:DC ground
17.Rated Wind Velocity:60 m/s
18.Reflector material:Copper pipe
19.Radome Color:grey
20.Operating temperature:- 40℃ ~ +80℃
21.Suitable pole diameter:￠40~￠115 |
|
Gain:7dBi
Polarization:Vertical polarization |
36.00 |

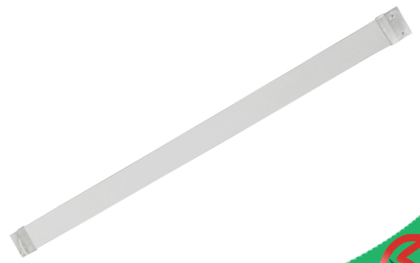

| ZT-STU-A5(5dBi) |
1.Radome Material:ABS
2.Size:900×60×35mm
3.Weight:0.6kg
4.Standard protocol:ISO 18000-6C
5.Working frequency:902-928MHz
6.Band width:26MHz(902-928MHz)
7.Gain:5dBi
8.Horizontal Beamwidth:80±5º
9.Vertical Beamwidth:30°
10.VSWR:≤1.4
11.F/B:≥23dB
12.Polarization:Circular polarization
13.Max power:100W
14.Impedance:50Ω
15.Polarization:Linear
16.Lightning Protection:GND
17.Rated Wind Velocity:39.6 m/s
18.Reflector material:Aluminum
19.Radome Color:White
20.Operating temperature:-40℃ ~ +55℃
21.Connector:SMA-J or customized |
|
Gain:5dBi
Polarization:Circular polarization |
48.00 |

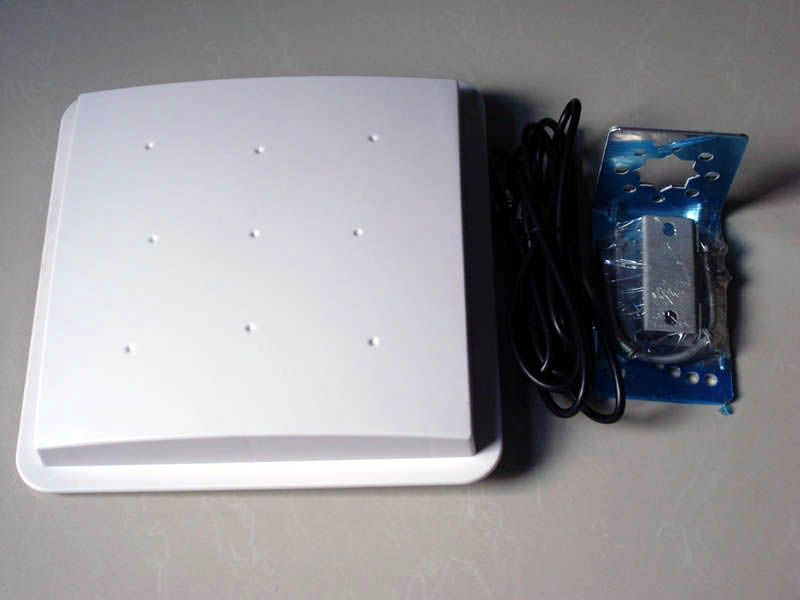

| ZT-RY-401A(8dBi) |
1. Reading arange:
8dbi antenna configuration, reading distance 0-5M.
2. Frequency Range :
FCC ISM 902~928MHz or ETSI 865.6~867.6MHz.
3. Support Protocol :
ISO-18000-6B or ISO-18000-6C(EPC G2)
4. Input Impedance : 50Ω.
5. Connector N (Receptacle)
6. Protection Class: IP-53.
7. VSWR : <1.3
8. Horizontal Beamwidth : 65°±5°
9. Vertical Beamwidth : 68°±5°
10. Size : 255mm*255mm*34mm.
11. Gross Weight : 1.5KG.
12. Polarization Direction: circular polarization. |
|
Gain 8dB antenna |
36.00 |

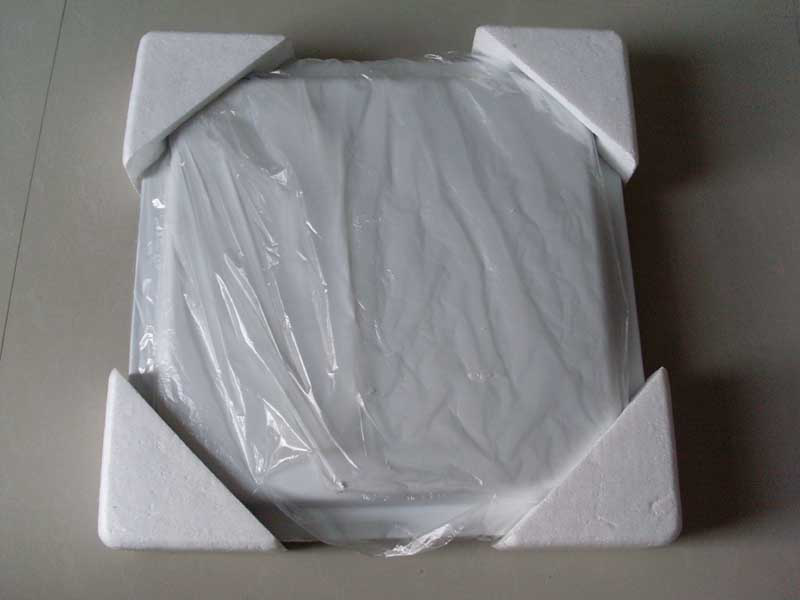

| ZT-RY-401B(12dBi) |
1. Reading arange:
8dbi antenna configuration, reading distance 0-5M.
2. Frequency Range :
FCC ISM 902~928MHz or ETSI 865.6~867.6MHz.
3. VSWR : <1.3
4. Lightning Protection: Direct ground
5. Horizontal 3.0dB beamwidth : 65°±5°
6. Vertical 3.0dB beamwidth : 68°±5°
7. Input Impedance : 50Ω.
8. Connector N (Receptacle)
9. Support Protocol :
ISO-18000-6B or ISO-18000-6C(EPC G2)
10. Protection Class: IP-53.
11. 445mmx445mmx40mm.
12. Gross Weight : 5KG.
13. Polarization Direction:
Linear / circular polarization (optional) |
|
Gain 12dB antenna |
71.00 |
