  UHF RFID Antenna (Product model: ZT-STU-A8(8dBi))

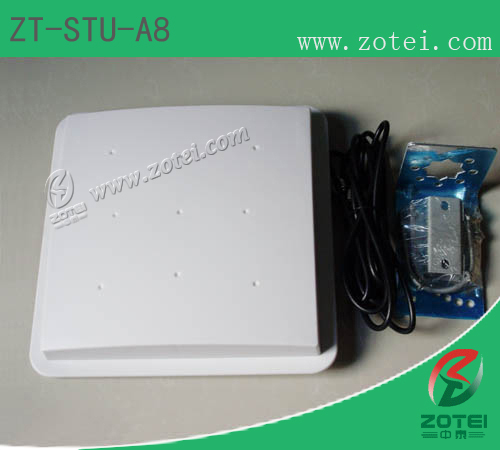

  ZT-STU-A8(8dBi) (UHF RFID Reader Writer Antenna)




Product type
ZT-STU-A8
Radome Material
ABS
Antenna Size
280×280×40mm
Packaging Size
450×350×150mm
Weight
2.3kg
Standard protocol
ISO 18000-6C
Frequency range
902-928MHz; 865-868MHz
Band width
26MHz(902-928MHz); 3MHz(865-868MHz)
Gain
8dBi
Beam width E-Plane
68°
Beam width H-Plane
65°
VSWR
≤1.3
F/B
>25dB
Polarization
Circular polarization
Max power
100W
Impedance
50Ω
Connector
N-female or user specific
Application
Radio-frequency reader antenna, used for terminals, parking lots, shopping malls, toll station.
Characteristic
Pleasing in appearance, environmental adaptability, easy installation !
