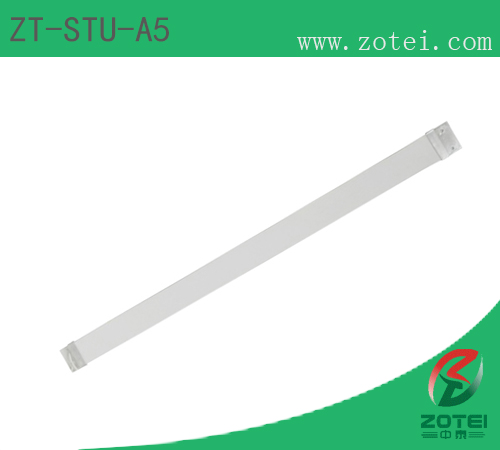

UHF RFID Antenna (Product model: ZT-STU-A5(5dBi)) |
| |
|
| |
|
| |
|
| |
|
| |
 |
| |
|
| |
 |
| |
|
| |
Product type |
ZT-STU-A5 |
Radome Material |
ABS |
Size |
900×60×35mm |
Weight |
0.6kg |
Standard protocol |
ISO 18000-6C |
Working frequency |
902-928MHz |
Band width |
26MHz(902-928MHz) |
Gain |
5dBi |
Horizontal Beamwidth |
80±5º |
Vertical Beamwidth |
30° |
VSWR |
≤1.4 |
F/B |
≥23dB |
Polarization |
Circular polarization |
Max power |
100W |
Impedance |
50Ω |
Polarization |
Linear |
Lightning Protection |
GND |
Rated Wind Velocity |
39.6 m/s |
Reflector material |
Aluminum |
Radome Color |
White |
Operating temperature |
-40℃ ~ +55℃ |
Connector |
SMA-J or customized |
|
|
