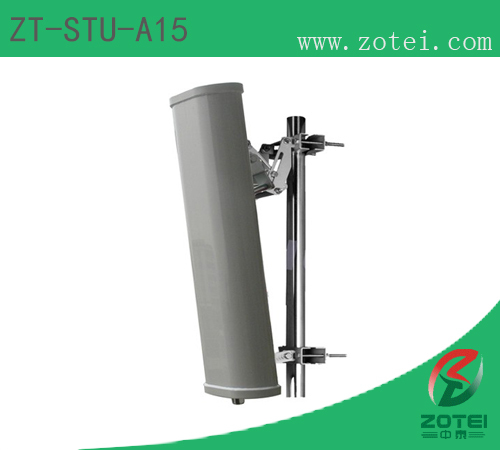

UHF RFID Antenna (Product model: ZT-STU-A15(15dBi)) |
| |
|
| |
|
| |
|
| |
|
| |
 |
| |
|
| |
 |
| |
|
| |
Product type |
ZT-STU-A15 |
Radome Material |
ABS |
Size |
1200*280*90 mm |
Weight |
9.5kg |
Package size |
1250*320*220 mm |
Standard protocol |
ISO 18000-6C |
Working frequency |
902-928MHz OR 865-868MHz |
Band width |
26MHz(902-928MHz) |
Gain |
15dBi |
Beam width E-Plane |
16° |
Beam width H-Plane |
65° |
VSWR |
≤1.5 |
F/B |
>25dB |
Polarization |
Linear polarization |
Max power |
100W |
Impedance |
50Ω |
Radome Material |
Fiberglass |
Connector |
N-female or user specified |
Application |
Suitable for car parks, docks, cargo and other sectors covered by Service. |
Characteristic |
Frequency bandwidth, covering 865-868/902-928 MHz reader with antenna, equipped with mechanical angle adjusting code, easy installation, adjustable angle. |
|
|
