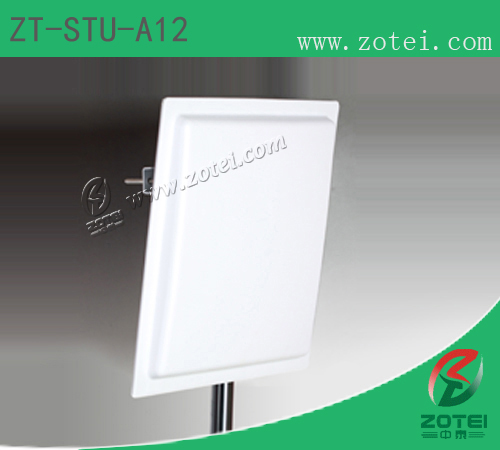

UHF RFID Antenna (Product model: ZT-STU-A12(12dBi)) |
| |
|
| |
|
| |
|
| |
|
| |
 |
| |
|
| |
 |
| |
|
| |
Product type |
ZT-STU-A12 |
Radome Material |
ABS |
Antenna Size |
445×445×40mm |
Weight |
4.5kg |
Standard protocol |
ISO 18000-6C |
Frequency range |
902-928MHz; 865-868MHz |
Band width |
26MHz（902-928MHz）; 3MHz（865-868MHz） |
Gain |
12dBi |
Beam width E-Plane |
38° |
Beam width H-Plane |
40° |
VSWR |
≤1.4 |
F/B |
>25dB |
Polarization |
Linear Polarization |
Max power |
100W |
Impedance |
50Ω |
Connector |
N-female or user specific |
Application |
Radio-frequency reader antenna, used for terminals, parking lots, shopping malls, toll station. |
Characteristic |
Pleasing in appearance, environmental adaptability, easy installation ! |
|
|
