      home > product > UHF RFID reader | writer > UHF RFID antenna > ZT-STU-A7

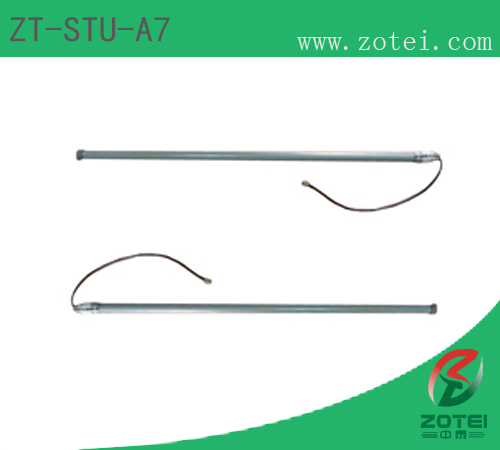

  UHF RFID Antenna (Product model: ZT-STU-A7(7dBi))




  UHF RFID Reader/writer Antenna




Product type
ZT-STU-A7
Radome material
fiberglass
Size
¢26×1000mm
Weight

Standard protocol
ISO 18000-6C
Working frequency
902-928MHz
Band width
26MHz(902-928MHz)
Gain
7dBi
Electronic inclination angle
Horizontal Beamwidth
360°
VSWR
≤1.5
F/B
≥22dB
Polarization
Vertical polarization
Max power
100W
Impedance
50Ω
Connector
N-J
Anti-thunder Protection
DC ground
Rated Wind Velocity
60 m/s
Reflector material
Copper pipe
Radome Color
grey
Operating temperature
- 40℃ ~ +80℃
Suitable pole diameter
¢40~¢115
Application
used for terminals, parking lots, shopping malls and toll stations
Characteristic
good environmental adaptability, easy installation
