| home > price > UHF RFID reader | writer > desktop reader / writer price |
 |
| |
|
| |
Desktop reader / writer price |
| |
|
| |
|
| |
The following quotation may be adjusted as the Exchange Rate varies, please reconfirm the prices with us. please contact us. |
| |
|
| |
product model |
parameter |
Product
Picture |
specifications |
price
(USD/set) |

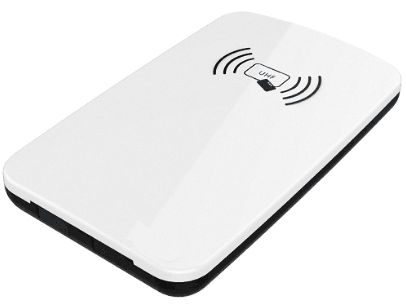

| ZT-STU-6210 |
1.Tag protocols:
ISO18000-6B,EPC Class 1,EPC Class 1 GEN 2;
2.Operating Method:
FHSS or fixed frequency(setted by software);
3.Power smoothness: < 0.5 DB;
4.RF power range: 0~30 dBm, Adjustable by software;
5.Identify tag mode: Identify tag mode can be setted as:
Reads the tag in fixed time automatically
or read tag after external triggering or software command;
6.Identify tag time: <10ms(Identify single tag);
7.Reading/Writing tag time:
No more than 10ms every 8 bytes when reading,
25ms every 4bytes when writing;
8.Work status indication: Buzzer;
9.Reading tag distance: More than 15CM when reading;
10.Communication interface:
Double USB(1.USB to serial port, 2.USB to keyboard input)
11.Host size: 142*85*20mm;
12.Package size: 180*120*50mm
13.Package Weight: 600g |
|
Double USB interface |
71.00 |

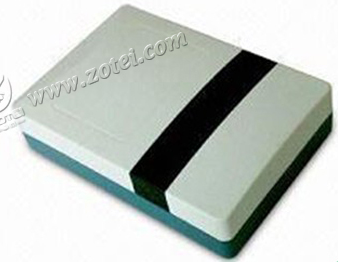

| ZT-STU-6220 |
1.Frequency Range:
ISM 902~928MHZ (FCC) or 865~868MHz (EU)
or other frequency range
( Ajustable for local regulations);
2.Tag protocols:
ISO18000-6B,EPC Class 1, EPC Class 1 GEN 2;
3.Operating Method: FHSS or fixed frequency
(setted by software);
4.Power smoothness: < 0.5 DB;
5.RF power range: 0~30 dBm, Adjustable by software;
6.Identify tag mode: Identify tag mode can be setted as:
Reads the tag in fixed time automatically
or read tag after external triggering or software command;
7.Identify tag time: <10ms(Identify single tag);
8.Reading/Writing tag time:
No more than 10ms every 8 bytes when reading,
25ms every 4bytes when writing;
9.Work status indication: Buzzer;
10.Reading tag distance: More than 20cm when reading;
11.Communication interface: RS232;
12.Power supply: DC 7.5V~12V, 3A;
13.Antenna Power: 1W(Through the software can be adjusted);
14.Size: 160 × 110 × 40 mm;
15.Package Weight: 1 kg;
16.Package Size: 170 × 120 × 50 mm (6.69in × 4.72in × 1.97in); |
|
RS232 |
80.00 |
ZT-STU-6230 |
1.Metal material design.
2.Anti-corrosion,
can be used in bad industrial environment.
3.Only read on the front side.
4.Working Frequency:
902~928Mhz or 865~868MHz
5.Antenna gain:3dBi circular polarization
6.Protocol:ISO 18000-6C(ECP C1 GEN2)
7.Communication port:RS232,RS485
8.Output port:One-way relay output
9.Software & SDK:DEMO
and C#, VC, VB, Java, DELPH, etc.
10.Reading Range:Stable reading range 20cm
11.Writing range:Stable writing 0~10cm
12.Power:DC12~28V
13.Output power:0~18±1dBm
14.Working temperature:-20℃~+75℃
15.Storage temperature:-45℃~+85℃
16.Item size:119x104x28mm
17.Package size:180x120x50mm
18.Tooling hole:10x4mm
19.Net weight:300g
20.Shell material:Aluminum Alloy |
|
Stable read 0-20CM
(adjustable).
Data interface:
RS232 and RS485.
Advantages:
reading cards on the front,
not reading cards on the side.
Aluminum shell. |
107 |
ZT-STU-8300 |
1.Frequency range: 902MHz ~ 928MHz(customized)
2.Development kit: C#,VC,VB,Java,C++
3.Reading distance: 80~100cm (test with Alien 9662 card)
4.Writing distance: 20-40cm(test with Alien 9662 card)
5.Size: 180*131*27mm
6.Output power: 0~18dBm
7.Power: 110V-240V/50-60Hz
8.Adaptor: DC 7.5V~12V , 3A
9.Antenna Gain: 5dBi
10.Protocol: ISO18000-6C EPC C1 Gen2
11.Communication interface: RS232, RJ45, Wiegand 26/34/42
12.Working temperature: -20℃ to 75℃
13.Storage temperature: -45℃ to 85℃
14.Housing material: Aluminum alloy
15.Net weight: 500g |
|
Stable read 0-50CM
(adjustable).
Data interface:
RS232 and RJ45.
Aluminum shell. |
133 |

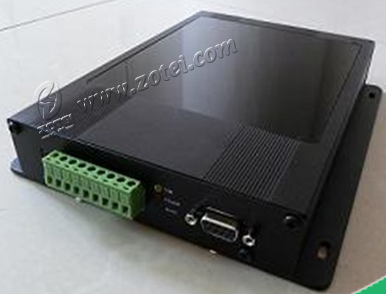

| ZT-STU-8200A |
1.Frequency Range:
ISM 902~928MHZ (FCC) or 865~868MHz (EU)
or other frequency range ( Ajustable for local regulations);
2.Tag protocols:
ISO18000-6B,EPC Class 1, EPC Class 1 GEN 2;
3.Operating Method:
FHSS or fixed frequency(setted by software);
4.Power smoothness: < 0.5 DB;
5.RF power range: 0~30 dBm, Adjustable by software;
6.Identify tag mode: Identify tag mode can be setted as:
Reads the tag in fixed time automatically
or read tag after external triggering or software command;
7.Identify tag time: <10ms(Identify single tag);
8.Reading/Writing tag time:
No more than 10ms every 8 bytes when reading,
25ms every 4bytes when writing;
9.Work status indication: Buzzer;
10.Reading tag distance: More than 50cm when reading;
11.Communication interface:
RS485 / RS232 / Wiegand26 / Wiegand34;
12.Power supply: DC 7.5V~12V, 3A;
13.Antenna Power: 1W(Through the software can be adjusted);
14.Size: 220 × 185 × 35 mm;
15.Package Weight: 3.0kg (6.614lb.);
16.Package Size: 30cm × 29cm × 40cm; |
|
Wiegand / RS232 / RS485 |
89.00 |

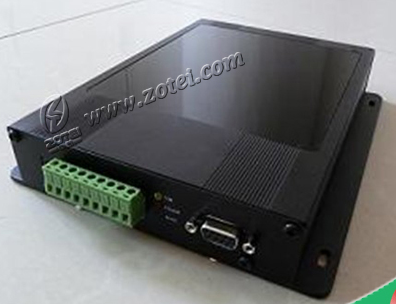

| ZT-STU-8200B |
1.Frequency Range:
ISM 902~928MHZ (FCC) or 865~868MHz (EU)
or other frequency range ( Ajustable for local regulations);
2.Tag protocols:
ISO18000-6B,EPC Class 1, EPC Class 1 GEN 2;
3.Operating Method:
FHSS or fixed frequency(setted by software);
4.Power smoothness: < 0.5 DB;
5.RF power range: 0~30 dBm, Adjustable by software;
6.Identify tag mode: Identify tag mode can be setted as:
Reads the tag in fixed time automatically
or read tag after external triggering or software command;
7.Identify tag time: <10ms(Identify single tag);
8.Reading/Writing tag time:
No more than 10ms every 8 bytes when reading,
25ms every 4bytes when writing;
9.Work status indication: Buzzer;
10.Reading tag distance: More than 50cm when reading;
11.Communication interface:
RJ45(TCP/IP) / RS232 / Wiegand26 / Wiegand34;
12.Power supply: DC 7.5V~12V, 3A;
13.Antenna Power: 1W(Through the software can be adjusted);
14.Size: 220 × 185 × 35 mm;
15.Package Weight: 3.0kg (6.614lb.);
16.Package Size: 30cm × 29cm × 40cm; |
|
Wiegand / RS232 / RJ45(TCP/IP) |
119.00 |

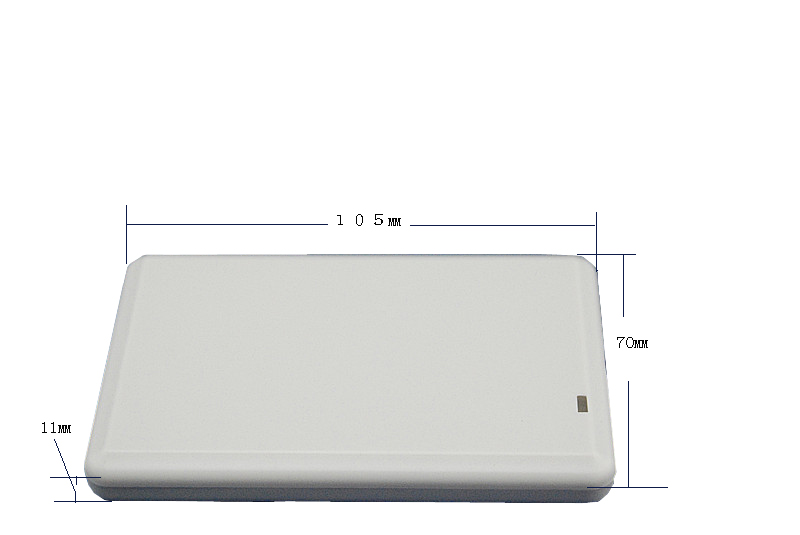

| ZT-RY-105 |
1. Frequency Range :
902～928MHz or 865～868MHz
(Adjustable for local regulations)
2. Read/write Range :
Built-in transceiver antenna, reading distance >180mm,
writing distance >80mm.
3. Support Protocol :
UHF EPC Gen2(ISO 18000-6C), ISO 18000-6B.
4. Interface :
USB interface is energized, do not need external power supply.
5. Operating Method : FHSS or fixed frequency .
6. Output Power : maximum 13dbm (adjustable)
7. DLL can be provided, and supports secondary development.
8. The output format and parameters
of undriven simulation keyboard can be customized.
9. Size : 105mmx70mmx11mm.
10. Net Weight : 80g |
|
USB;
The standard machine is
support read/write function ,
if need simulation keyboard
function ,
output format can be
customized as requirements. |
62.00 |

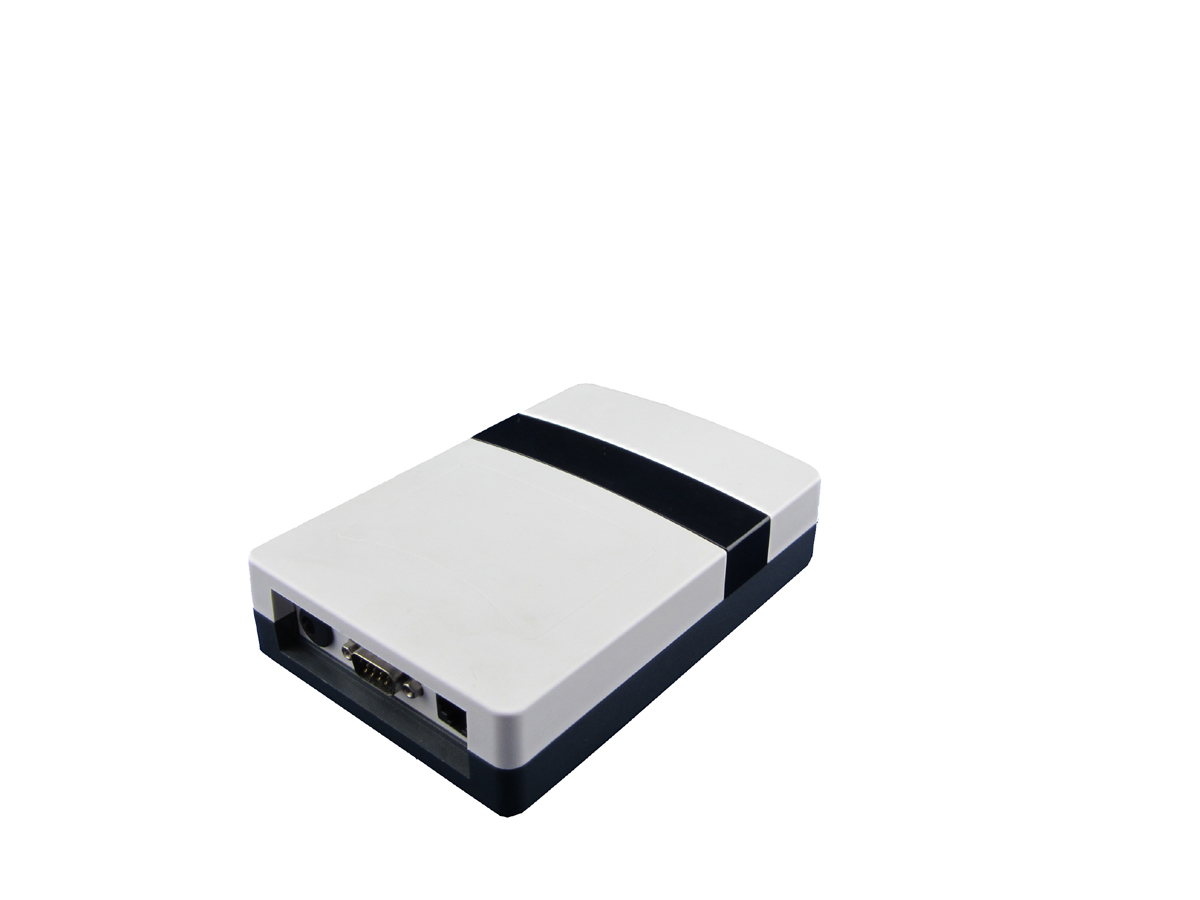

| ZT-RY-107 |
1. Frequency Range :
902～928MHz or 865～868MHz
(Adjustable for local regulations)
2. Read/Write Range :
reading distance 0-300mm, writing distance 0-200mm.
3. Support Protocol :
UHF EPC Gen2(ISO 18000-6C), ISO 18000-6B.
4. Interface : RS232, Wiegand
(with Enethnet port or WIFI is available)
5. Operating Method : FHSS or fixed frequency.
6. Output Power : maximum 30dbm (adjustable)
7. DLL can be provided,
and supports C++/VB/VC/C#/JAVA languages
secondary development.
8. Low power consumption , single 9V/12V power supply.
9. Working Mode : response (interaction) and active mode.
10. Output format and parameters
can be configured in active working mode.
11. Size: 160mmx110mmx35mm.
12. Net weight : 200g |
|
Wiegand / RS232 |
89.00 |

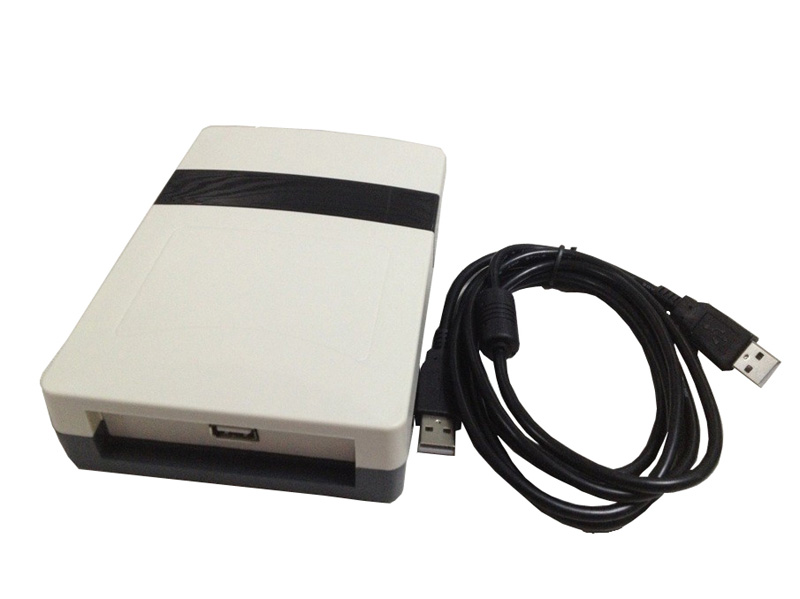

| ZT-RY-107USB |
1. Frequency Range :
902～928MHz or 865～868MHz
(Adjustable for local regulations)
2. Read/Write Range :
reading distance 0-300mm, writing distance 0-200mm.
3. Support Protocol :
UHF EPC Gen2(ISO 18000-6C), ISO 18000-6B.
4. Interface : USB.
5. Operating Method : FHSS or fixed frequency.
6. Output power : maximum 30dbm (adjustable)
7. Low power consumption, USB power supply.
8. DLL can be provided,
and supports C++/VB/VC/C#/JAVA languages
secondary development.
9. Working Mode : response (interaction) and active mode.
10. Output format and parameters
can be configured in active working mode.
11. Size : 160mmx110mmx35mm.
12. Net weight : 200g |
|
USB |
89.00 |

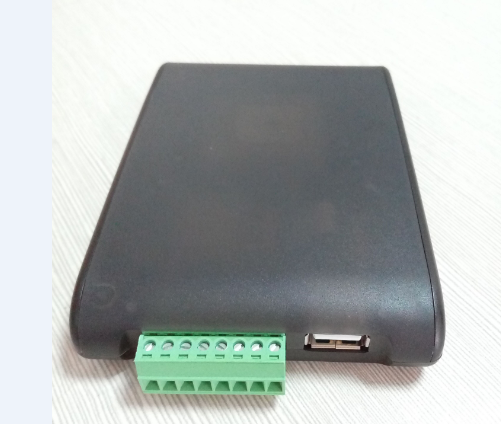

| ZT-RY-9816 |
1. Fully support for the EPC C1G2 (ISO 18000-6C) protocol.
2. Frequency Range :
902～928MHz or 865～868MHz
(Adjustable for local regulations)
3. Operating Method : FHSS or fixed frequency.
4. Reading Distance : 2～3M
( Adjustable for different situation)
5. Identify multiple tag performance : > 50pcs.
6. Identify tag speed : >50pcs/ms.
7. Tag cache capacity :
370pcs @ longest 128bits EPC or 120pcs
@ longest 496bits EPC.
8. Low power consumption,
USB interface or external single+ 9V power supply.
9. Supports RSSI.
10. 2 GPIO universal output interface.
11. Communication Interface : USB(virtual serial port),
RS232 COM port,
Wiegand(Optional) and USB HID simulation keyboard.
12. High stability,
does not heat with long-term continuous
full load work at room temperature.
13. It supports work all year round.
14. Size : 122.4mmx84mmx20mm. |
|
RS232 / USB |
98.00 |
|
| |
|
|
