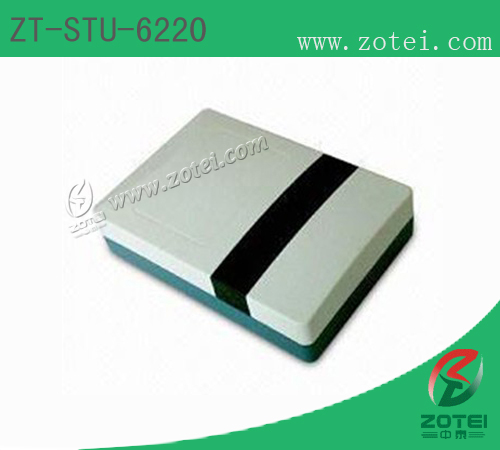

UHF RFID desktop Reader / writer (Product model: ZT-STU-6220) |
| |
|
| |
|
| |
|
| |
|
| |
 |
| |
|
| |
 |
| |
|
| |
Products Features
> Multi-protocol support: ISO 18000-6B&ISO 18000-6C(EPC Gen2);
> Super anti-interference ability for its FHSS frequency working method;
> Multi-reader synchronise;
> Software with different Programming language allows easy upgrade;
> Waterproof and sunshine defending, idea for outdoor applications;
> All kinds of communication interfaces and customizing is available too;
> Provide setups SDK, and can provide C#, VC, VB, Delphi, Java, Linux development routines.
Technology Parameter
> Frequency Range: ISM 902~928MHZ (FCC) or 865~868MHz (EU) or other frequency range ( Ajustable for local regulations);
> Tag protocols: ISO18000-6B,EPC Class 1, EPC Class 1 GEN 2;
> Operating Method: FHSS or fixed frequency(setted by software);
> Power smoothness: < 0.5 DB;
> RF power range: 0~30 dBm, Adjustable by software;
> Identify tag mode: Identify tag mode can be setted as: Reads the tag in fixed time automatically or read tag after external triggering or software command;
> Identify tag time: <10ms(Identify single tag);
> Reading/Writing tag time: No more than 10ms every 8 bytes when reading, 25ms every 4bytes when writing;
> Work status indication: Buzzer;
> Reading tag distance: More than 20cm when reading;
> Communication interface: RS232;
> Power supply: DC 7.5V~12V, 3A;
> Antenna Power: 1W(Through the software can be adjusted);
> Size: 160 × 110 × 40 mm;
> Package Weight: 1 kg;
> Package Size: 170 × 120 × 50 mm (6.69in × 4.72in × 1.97in);
> Work Temperature: -20℃~+65℃ (-49°F~167°F);
> Storage Temperature: -45℃~+95℃ (-58°F~ 185°F);
> Spare Parts: 1 power cord; 232 serial line.1 Optical disk.
Applications
> Intelligent traffic such as ETC, customes border-crossing, parking lot, automatic weighing etc;
> Logistics such as container management, pallet management, asset tracing etc;
> Ticketing& access control;
> Pharmaceuticals such as medical waste management ,etc.
Download
Software Development Kit |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
