  UHF RFID Desktop Reader / writer (Product model: ZT-RY-105)




  ZT-RY-105 (UHF RFID desktop card dispenser)





ZT-RY-105 is a high performance Multiple Protocol UHF RFID Reader. It is designed upon fully self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, attendance system, anti-counterfeit and industrial production process control system.

Standard Product:
One ZT-RY-105 host, a piece of USB line.


FEATURES
 > Self-intellectual property;
 > Support UHF EPC Gen2(ISO18000-6C),ISO18000-6B protocol tags;
 > Advanced tag processing algorithm, high identification rate;
 > 902~928MHz, 865~868MHz frequency band(according to different countries or regions may require the adjustment) ;
 > FHSS or Fix Frequency transmission;
 > RF output power up to 10dbm(adjustable);
 > Built-in antenna with effective distance up to 180mm;
 > Low power dissipation design;
 > Optional USB interface;
 > Hold the USB1.1 interface, virtual serial way to work, USB the hassel ways and USB hassel emulation keyboard optional;
> Under the way of simulate the keyboard mode,the output format and parameters can be customized;
 > Provide DLL and Demonstration Software Source code to facilitate further development;
 > Size: H105mm × W70mm × T11mm, weight: 300g

CHARACTERISTICS
 > Absolute Maximum Rating

ITEM SYMBOL VALUE UNIT
Power Supply VCC 16 V
Operating Temp TOPR -10~+60
Storage Temp TSTR -25~+80

 > Electrical and Mechanical Specification
    Under TA=25℃,VCC=+5V unless specified
ITEM

SYMBOL

MIN TYP MAX UNIT
Power Supply VCC 3.3 5 5.5 V
Current Dissipation IC   90 150 mA
Frequency FREQ 902   928 MHz
Effective Distance DIS 0 120 180 mm

   * Effective distance depends on protocol, tag and environment.


Download
  Software Development Kit

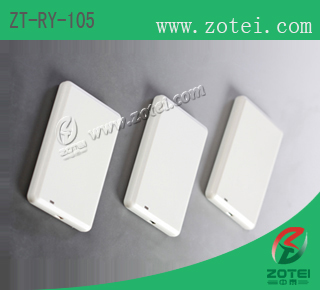

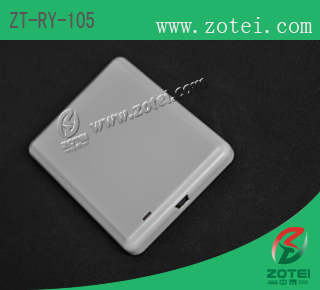

ZT-RY-105 (UHF RFID desktop card dispenser)   ZT-RY-105 (UHF RFID desktop card dispenser)
