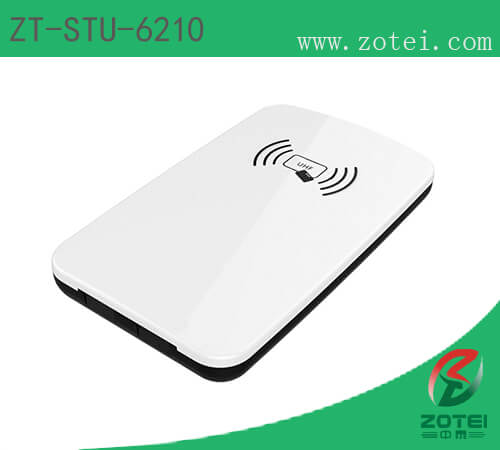

UHF RFID desktop Reader / writer (Product model: ZT-STU-6210) |
| |
|
| |
|
| |
|
| |
|
| |
 |
| |
|
| |
 |
| |
|
| |
FEATURE:
> Read data: it can get the ID number of tag, and also get the data which in the specify area, multi tags reading will be available;
> Write data: can write data in specify tag’s storage area,like EPC,User,Reserve;
> Provide Free SDK,Communicate with controller or PC, that can get the data; support secondary development
> Has USB keyboard outport, get the data whatever the cursor where is.
> easy to operate Demo, with import/export data,continuous write data,auto-generate data.
APPLICATION:
> Logistics and warehouse management;
> Production line management;
> Product security detection;
> club management;
> library, consumption management;
> attendance management.
SPECIFICATION:
> Working Frequency: 902~928Mhz or 865~868MHz
> Antenna gain: 3dBi circular polarization
> Protocol: ISO 18000-6C(ECP C1 GEN2)
> Communication port: Left USB to serial port / Right USB to keyboard input
> Software & SDK: DEMO and C#, VC, VB, Java, DELPH, ect.
> Encryption: Can be directly encrypted, copy prevention
> Reading Range: Stable reading 60~80cm
> Writing range: Stable writing 0~10cm
> Power: USB
> Output power: 0~18±1dBm
> Working temperature: -20℃~+75℃
> Storage temperature: -45℃~+85℃
> Item size: 142*85*20mm
> Package size: 180x120x50mm
> Net weight: 200g
> Shell material: ABS
> Type: UHF RFID Reader/Writer
Download
Software Development Kit
|
|
| |
| |
| |
|
| |
|
| |
|
| |
|
|
