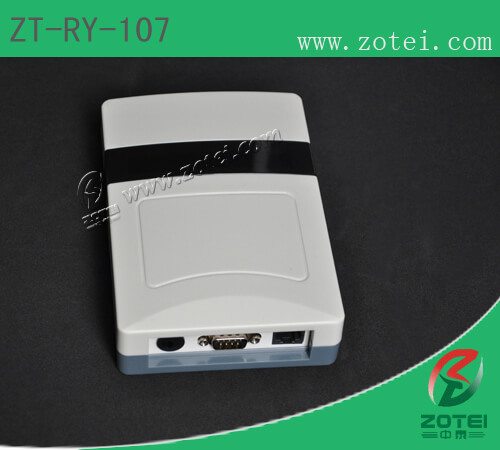

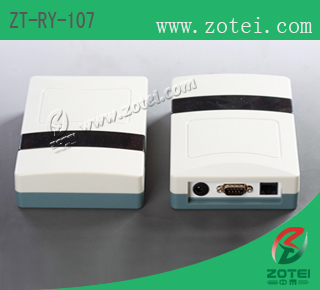

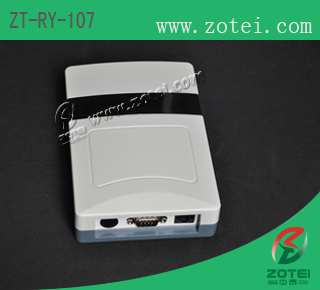

UHF RFID Desktop Reader / writer (Product model: ZT-RY-107) |
| |
|
| |
|
| |
|
| |
|
| |
 |
| |
|
| |
 |
| |
|
| |
ZT-RY-107 R is a high performance Multiple Protocol UHF RFID Reader. It is designed upon fully self-intellectual property. Based on proprietory efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, attendance system, anti-counterfeit and industrial production process control system.
Standard Product:
ZT-RY-107 main engine(WIEGAND/RS232/RS485), DB9 serial port line, Dedicated power supply machine.
Optional:
RJ45 Interface.
FEATURES
> Self-intellectual property;
> Support ISO18000-6C (EPC C1G2),ISO18000-6B protocol tag;
> 902~928MHz, 865~868MHz frequency band(according to different countries or regions may require the adjustment) ;
> FHSS or Fix Frequency transmission;
> RF output power up to 30dbm(adjustable);
> Built-in wideband antenna with effect distance up to 600mm;
> Support auto-running and interactive work mode;
> Low power dissipation with single +9V DC power supply;
>Support RS232, Wiegand, RJ45 (optional) interface;
> Output format and parameters configurable;
> Provide SDK and demo software to facilitate further development;
> Size: H160mm × W110mm × T40mm;
>
Weight: 1 kg.
INTERFACE
| DB9 Male |
|
| Pin |
Symbol |
Comment |
| 1 |
NC |
Reserved |
| 2 |
TXD |
TXD of RS232 |
| 3 |
RXD |
RXD of RS232 |
| 4 |
NC |
Reserved |
| 5 |
GND |
GND |
| 6 |
WD0 |
Wiegand data0 |
| 7 |
NC |
Reserved |
| 8 |
WD1 |
Wiegand data1 |
| 9 |
GND |
GND |
CHARACTERISTICS
> Absolute Maximum Rating
| ITEM |
SYMBOL |
VALUE |
UNIT |
| Power Supply |
VCC |
16 |
V |
| Operating Temp |
TOPR |
-10~+60 |
℃ |
| Storage Temp |
TSTR |
-25~+80 |
℃ |
> Electrical and Mechanical Specification
Under TA＝25℃，VCC＝+9V unless specified
| ITEM |
SYMBOL |
MIN |
TYP |
MAX |
UNIT |
| Power Supply |
VCC |
6 |
6 |
12 |
V |
| Current Dissipation |
IC |
|
400 |
700 |
mA |
| Frequency |
FREQ |
902 |
|
928 |
MHz |
| Effective Distance |
DIS |
0 |
100 |
500 |
mm |
* Effective distance depends on protocol, tag and environment.
Download
Software Development Kit
|
|
|
