| home > price > UHF RFID reader | writer > channel reader / writer price |
 |
| |
|
| |
Channel reader / writer price |
| |
|
| |
|
| |
The following quotation may be adjusted as the Exchange Rate varies, please reconfirm the prices with us. please contact us. |
| |
|
| |
product model |
parameter |
Product
Picture |
specifications |
price
(USD/set) |

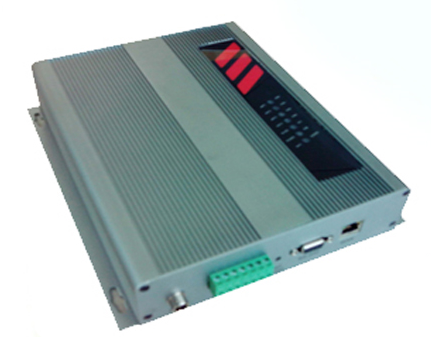

| ZT-STU-927 |
1.Working frequency: 902~928 MHz
2.Chip: Impinj R500(default) / optional IMPINJ R2000
3.Protocol: ISO18000-6C(EPC G2)
4.Software:Provides a DEMO
(Reading and writing tags automatically),
which helps customer to build their own system or demo.
5.SDK: Provides SDK with programming samples
6.Communication port:RS232, TCP/IP(WIFI customizable)
7.Antenna:Can connect to 4 TNC port antenna
8.Reading Range:8DBI circular polarization antenna,
stable reading range 4-6M(adjustable),
With 12DBIantena, 6-9M(adjustable)
9.Tags handling volume:Reading and writing 0-200 tags
10.Working temperature:-40℃~+65℃
11.Power:DC7.5V,3A
12.Weight:2KG
13.Size:230×180×50MM |
|
4 TNC antenna port
with Impinj R500 Chip
RS232 / RJ45(TCP/IP) |
708.00 (Does not contain antenna) |

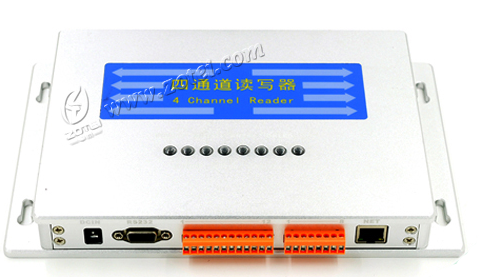

| ZT-STU-928 |
1.Working frequency: 902~928 MHz
2.Chip:IMPINJ R2000(default) / optional Impinj R500
3.Protocol:ISO18000-6C(EPC G2)
4.Software:Provides a DEMO
(Reading and writing tags automatically),
which helps customer to build their own system or demo.
5.SDK:Provides SDK with programming samples
6.Communication port:RS232, TCP/IP(WIFI customizable)
7.Antenna:Can connect to 4 TNC port antenna
8.Reading Range:
8DBI circular polarization antenna,
stable reading range 5-8M(adjustable)
With 12DBIantena, 12-15M(adjustable)
9.Tags handling volume:Reading and writing 0-250 tags
10.Working temperature:-40℃~+65℃
11.Power:DC7.5V,3A
12.Weight:2KG
13.Size:230×180×50MM |
|
4 TNC antenna port
with Impinj R2000 chip
RS232 / RJ45(TCP/IP) |
496.00 (Does not contain antenna) |
| ZT-STU-932 |
1.Working Frequency 902～928 MHz or 865~868MHz
2.Chip:Impinj R2000
3.SDK:
Provides SDK with programming samples(c#,vc,java etc.)
4.Software:
Provides a DEMO(Reading and writing tags automatically),
which helps customer to build their own system or demo.
5.Protocol ISO18000-6C(EPC G2)
6.Antenna:Can connect to 32 SMA port antenna
7.Size:275*180*30MM
8.Weight:3.5kg
9.Working temperature: -20℃~+70℃
10:Storage temperature: -30℃~+80℃
11.Communication port RS232, TCP/IP(WIFI customized)
12.Power DC9V~12V, 3A
13.Reading range > 10m (work with 8.5dBm antenna) |
|
32 SMA antenna port
RS232 / RJ45(TCP/IP) |
1355.00 (Does not contain antenna) |
| ZT-STU-9230 |
1.Working Frequency:
902～928 MHz or 865~868MHz
2.Chip: INDY R2000
3.Radio frequency power:
0～30dBm(Can be adjusted by software)
4.SDK C#, VC, JAVA
5.Multiple tag reading: 0-200 tags
6.Software: Provide demo software(Reading/writing
tags automatically easy to write tag)
7.Protocol: ISO18000-6C（EPC G2）
8.Connector: 2*SMA female(customized)
9.Storage space: 256 M large capacity Flash electricity save
10:Real-time clock:
without electricity, real-time clock save and working timely
11.Frequency modulation way:
Broad spectrum frequency hopping or fixed frequency
12:Input/output interface:
Two-way relay output, two-way I/O input
13.Label signal numerical: RSSI numerical test
14.Output power: 0~30±1dBm
15.Size: 180*131*27mm
16.Net weight: Around 500g |
|
Built in INDY R2000 chip
2 SMA antenna port
RS232,
RS485,
RJ45(TCP/IP),
Wiegand |
538.00 (Does not contain antenna) |
| ZT-STU-922 |
1.Working frequency: 902~928MHz or 865~868MHz
2.Support protocol: ISO18000-6C(EPC C1 Gen2)
3.RF chip: Impinj R2000
4.RF power: 0dBm~30dBm(adjustable)
5.SDK: provide SDK and C#,VC,Java development routines
6.Download: Software Development Kit
7.Communication interface:
Wiegand26/34/42,RS232,RS485,RJ45,WIFI
8.Reading distance:
3m(depends on antenna, tag and environment)
9.Storage capacity: 256M flash memory
10.Real time clock: real time clock after power off
11.Frequency method: hopping or fixed
12.Input/output interface: 2 way relay output, 2 way I/O input
13.Tag signal value: RSSI value detection
14.Antenna gain: 12dBi circular polarization
15.Working method: beep
16.Power supply: 12V/3A
17.Size: 1500*600*90mm(base:600*405mm) |
|
Built in Impinj R2000 chip
12dBi circular polarization
Wiegand / RS232 / RS485
/ RJ45(TCP/IP) / WIFI
2 way relay output,
2 way I/O input |
1815.00 (a pair) |

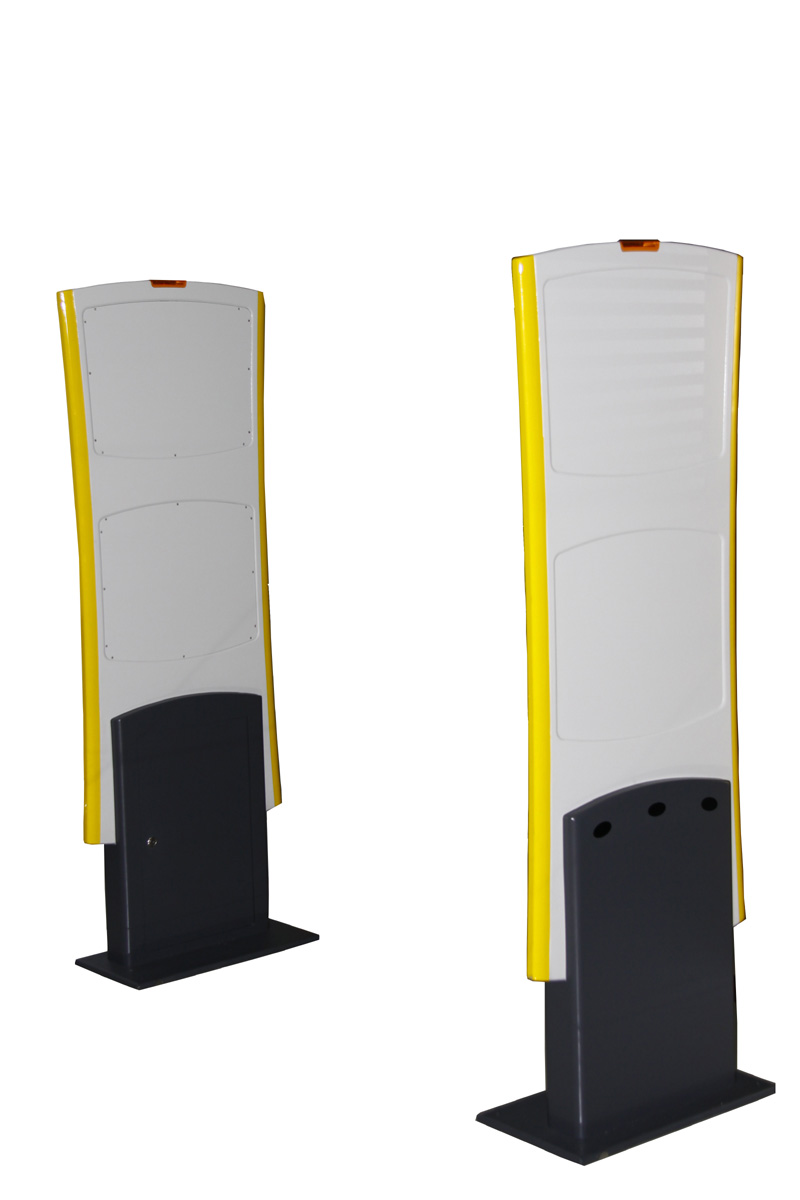

ZT-RY-808
|
1. ZK-RFID808 is a high performance gate
device management applications,
it supports fast tag anti-collision and read/write operation
with UHF EPC Gen2 (ISO 18000-6C) and ISO18000-6B protocol,
the standard RS232 serial communication interface can connect
directly to the main frame,
controller and other related equipment.
This device is an ideal choice for open-ended
mass flow RFID applications such as Channel Access,
Attendance, Check-in and Process control.
2. Complete Independent Intellectual Property Rights
3. Fully support EPC CLASS1 G2, ISO18000-6B protocol.
4. Frequency Range :
902～928MHz or 865～868MHz(Adjustable for local regulations)
5. Operating Method : FHSS or fixed frequency.
6. Output Power : up to 30dbm (adjustable)
7. Judging function for infrared motion direction(optional)
8. With advanced processing algorithm
and high recognize readability for tag.
9. Low power consumption.
10. Interface : RS232, RS485 and TCP/IP.
11. Built-in buzzer and indicator.
12. It can be connected to the camera,
large screen display / TV and other outputs
for more intuitive monitoring and management.
13. Highly reliable design is suitable for
rigorous working environments. |
|
Support RS232,
RS485
and RJ45(TCP/IP)
interface |
2570.00 (a pair) |
| ZT-RY-401 |
1. Fully support for the EPC CLASS1 Gen2,
ISO 18000-6B protocol.
2. Frequency Range :
902～928MHz or 865～868MHz(Adjustable for local regulations)
3. Operating Method : FHSS or fixed frequency.
4. Output Power : up to 30dbm (adjustable) ;
The read/write distance depends on the antenna.
5. 4 interfaces for external TNC antenna,
4 individual transmit/receive antennas extend practical
identification area.
6. Working Mode : active, response (interaction) and scanning
mode.
7. Low power consumption , single 9V/12V power supply.
8. Interface : RS232,RS485 and TCP/IP.
9. The device is support multi-tag identification,
single-tag read, write/lock and delete functions etc.
10. Built-in buzzer and indicator light.
11. Size : 230mm x 170mm x 40mm.
12. Gross Weight : 2300g. |
|
4 TNC antenna port
RS232 / RS485
/ RJ45(TCP/IP) |
345.00 (Does not contain antenna) |

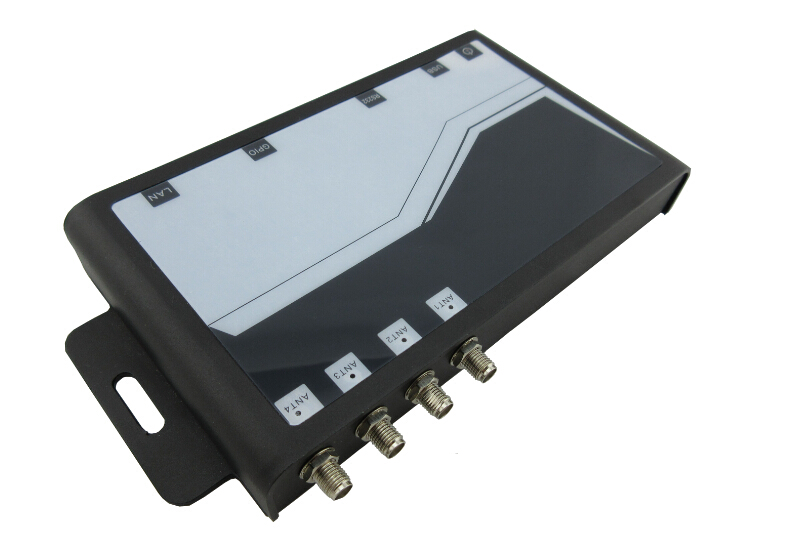

ZT-RY-403
|
1. Designed by Impinj R2000 module,
and supports many features such as fast read/write,
high accuracy rate, long distance and high reliability.
2. Fully support for the EPC CLASS1 Gen2(6C),
ISO 18000-6B protocol.
3. Frequency Range :
902～928MHz or 865～868MHz(Adjustable for local regulations)
4. Operating Method : FHSS or fixed frequency.
5. Supports RSSI.
6. Output Power : up to 30dbm (adjustable) ;
The read/write distance depends on the antenna.
7. 4 interfaces for external SMA antenna.
8. Working Mode : response (interaction) and scanning mode etc.
9. Low power consumption , single 9V/12V power supply.
10. Interface : RS232, RJ45 and USB.
11. Highly reliable with super strong
collision prevention algorithm of multi-tag,
which can real-time group of reading
multi-tag and reduce missd reading. |
|
R2000 chip
4 SMA antenna port
RS232 / RJ45(TCP/IP) / USB |
|

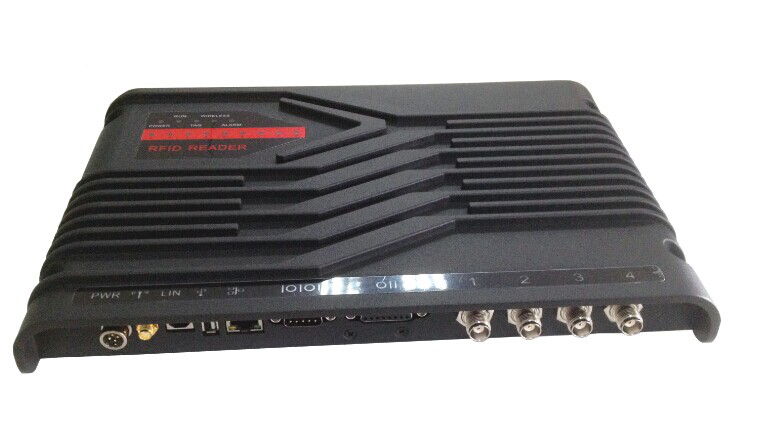

| ZT-RY-406 |
1. Based on Impinj R2000 read/write engine.
2. Fully support for the EPC CLASS1 Gen2(6C),
ISO 18000-6B protocol.
3. Frequency Range :
902～928MHz or 865～868MHz(Adjustable for local regulations)
4. Operating Method : FHSS or fixed frequency.
5. Output Power : up to 30dbm (adjustable)
6. 4 interfaces for external TNC antenna,
support automatic tuning and failure detection of antenna.
7. Working Mode : active, response,
trigger and real-time inquiry mode.
8. Support internal buffer memory
of 800pcs tags ( maximum EPC 496 bits)
9. EPC & TID both anti-collision modes are available.
10. Low power consumption , single 9V power supply.
11. Interface : RS232,RJ45(TCP/IP), WIFI (optional). |
|
R2000 chip
4 TNC antenna port
Support RS232,
RJ45(TCP/IP),
WiFi(optional) |
531.00 |
ZT-RY-1201
|
1. Based on Impinj R2000 read/write engine.
2. Fully support for the EPC CLASS1 Gen2,
ISO 18000-6B protocol.
3. Frequency Range :
902～928MHz or 865～868MHz(Adjustable for local regulations)
4. Operating Method : FHSS or fixed frequency.
5. Output Power : up to 30dbm (adjustable)
6. 12 interfaces for external SMA antenna,
support automatic tuning and failure detection of antenna.
7. Working Mode : active, response,
trigger and real-time inquiry mode.
8. Support internal buffer memory
of 800pcs tags ( maximum EPC 496 bits)
9. EPC & TID both anti-collision modes are available.
10. Low power consumption , single 9V power supply.
11. Interface : RS232, RJ45(TCP/IP)
12. Highly reliable design is suitable
for rigorous working environments.
13. Support Firmware online upgrade.
14. A host computer is support external connect
up to 12 antennas, which can effectively
reduce RFID blind zone
and prevent
missed reading. Its large application value in RFID
warehouse & production line management and real-time
monitoring of equipment. |
|
R2000 chip
12 SMA antenna port
Support RS232, RJ45(TCP/IP) |
726.00 |
| ZT-RY-909(master) |
1.Introduction
ZT-RY-909 is a high performance UHF antenna multiplexer
system for networking and distributing UHF RFID antennae
for real-time item level assets tracking and management.
It also ideal choices for smart shelf, electronic label shelf
and other RFID application.
2.Features
•Self-intellectual property;
•Work frequency 860~960MHz(adjustalbe);
•Tag Protocol: EPC Gen2(ISO18000-6C), ISO18000-6B
•Master and slave unit design;
•All information exchange between master and slave go
though RF cable and no extra communication cable needed.
•Master with 1 RF input connecting reader
and 8 RF output ports;

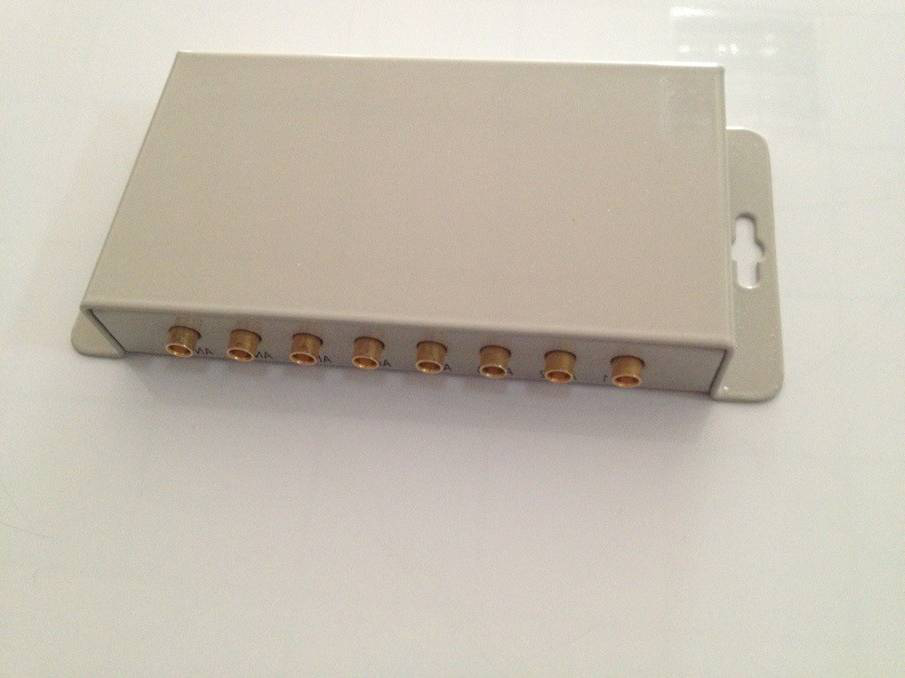

•Slave with 1 RF input connecting master, 1 RF output for
cascading and 8 RF output for antennae;
•Support 4 level slave cascading;
•Total 256 antennae supported;
•Support antenna scanning for its network topology
and plug-and-play;
•Low insertion loss;
•Low power dissipation design with single +9VDC supply;
•Support RS232 and TCPIP interface;
•High reliability design for harsh environment.
•Support interfaces: RS232,TCPIP network interfaces
•Antenna Number: Total 256 antennae
•Size: 200*105*28mm(Master)/125*59*17(Slave)
•Weight: 1200g(Master)/230g(Slave)
•Work Temp: -10~+55℃
•Storage Temp: -20~+75℃
3.Functions
For Intelligent antenna Multiplexer,256 antenna can
be connected with one reader output port,
1,024 antenna if with 1 4-port fixed reader.Widely applied for
RFID management system such as warehouse management,
equipment real-time monitoring,production process,etc.,
to greately reduce cost. |
|
Master multiplexer |
|
| ZT-RY-909(slave) |
|
Slave multiplexer
(Power and communication
depend on master multiplexer,
and can not be used
independently) |
|
|
| |
|
|
.png)
.png)
