| home > product > UHF RFID reader | writer > channel reader / writer > ZT-STU-928 |
 |
| |
|
| |

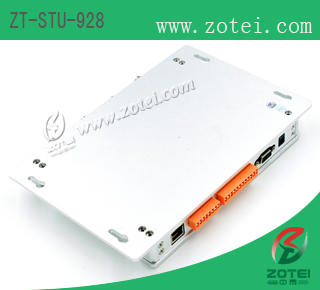

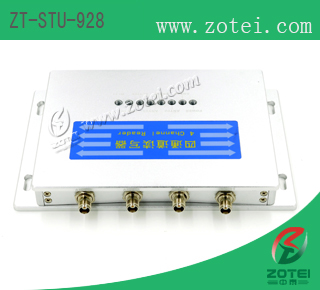

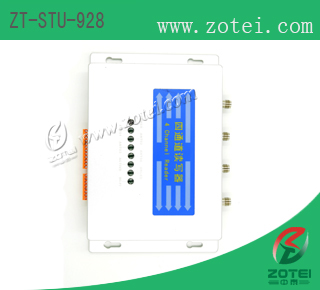

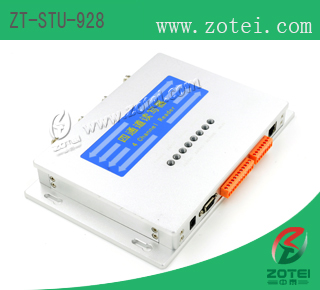

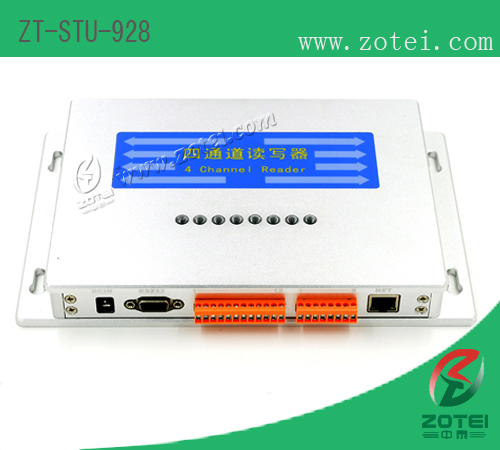

UHF RFID 4 Channel Reader / writer with Impinj R2000 Chip (Product model: ZT-STU-928) |
| |
|
| |
|
| |
|
| |
|
| |
 |
| |
|
| |
 |
| |
|
| |
Products Features
> Optional Module : WiFi / GPRS / RS485 / Wiegand;
> EPC Class 1 Gen2 UHF RFID protocol is fully supported , authentication under intense reading/writing as well.
> Using sophisticate data processing method, efficiently managing tag data through local network’s volume data.
> Highly adjustable buffering and tag filter mode, cuts down excessive tags’ reading and writing, which can lay down network’s data flow and server’s heavy load.
> Carry out a powerful and stable performance under intense reading and writing.
> Incredible speed of sending and receiving instructions. That which can create different combinations in order to reach a best performance to serve by setting different parameters such as:tags download instruction speed, the reflectance of tag-to-reader, modulate setting and reflex modulation. Reader has four ports, which port can connect to an antenna(reading and sending data to tags). That provides a high inventory rate,tags reading rate and the capability of catching tags in motion.
Working frequency |
902~928 MHz |
Chip |
IMPINJ R2000(default) / optional Impinj R500 |
Protocol |
ISO18000-6C(EPC G2) |
Software |
Provides a DEMO(Reading and writing tags automatically), which helps customer to build their own system or demo. |
SDK |
Provides SDK with programming samples |
Communication port |
RS232, TCP/IP(WIFI customizable) |
Antenna |
Can connect to 4 TNC port antenna |
Reading Range |
8DBI circular polarization antenna, stable reading range 5-8M(adjustable)
With 12DBIantena, 12-15M(adjustable) |
Tags handling volume |
Reading and writing 0-250 tags |
Working temperature |
-40℃~+65℃ |
Power |
DC7.5V,3A |
Weight |
2KG |
Size |
230×180×50MM |
Applications
> Intelligent traffic such as ETC, customes border-crossing, parking lot, automatic weighing etc;
> Logistics such as container management, pallet management, asset tracing etc;
> Ticketing& access control;
> Pharmaceuticals such as medical waste management ,etc.
Download
Software Development Kit |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
