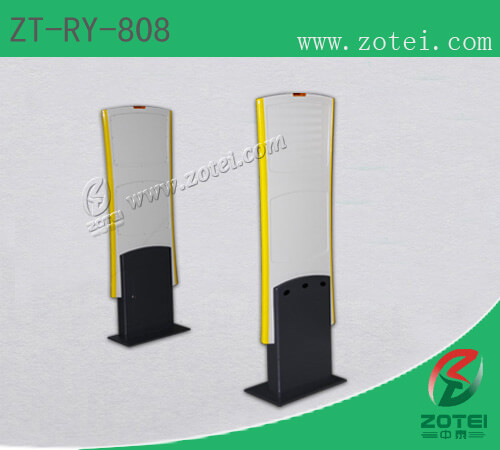

UHF Gate Device “ZT-RY-808” is designed for high performance gate device management applications. The series support fast tag anti-collision and read/write operations (including EAS function of NXP tag). Equipped with main/auxiliary gate antenna, 3 line infrared motion detection sensor, control board and standard RS232, RS485 serial communication ports and RJ45(TCP/IP) network port, the series are top choice for open mass flow RFID applications, such as: Library Entrance Control, Access Control, Process Control, etc.
FEATURES
> Self-intellectual property;
> Support UHF EPC G2(ISO18000-6C), ISO18000-6B protocol tags;
> 860~868MHz, 902~928MHz frequency band(frequency customization optional);
> FHSS or Fix Frequency transmission;
> RF output power up to 30dbm(adjustable);
> Built-in 3 line infrared motion detection sensor;
> Advanced anti-collision algorithm, high identification rate;
> Low power dissipation design;
> Support NXP tag/label EAS function;
> Support RS232, RS485 and RJ45(TCP/IP) network interface;
> Configuration various alarm modes;
> Support plug-in camera, large screen display/television to realize control and management in a more intuitive way;
> Size: H170cm × W60cm × T15cm, Weight: 80Kg.
Assembly
ZT-RY-808 including main and auxiliary channel antenna, The end of the main antenna box seat built-in split electronic tag reader, power supply, infrared controller (optional), and interface boards, the end of box eat the antennas built-in interface board.
ZK - RFID808 accessories include the AC power cord, power cable of the main and auxiliary antenna, main and auxiliary antenna alarm auxiliary cable, main and auxiliary antenna RF cable and RS232 serial communication lines.
Main antenna end of the box seat wiring information:

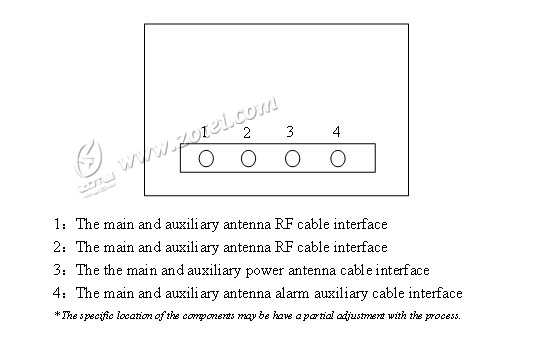

Antennas at the end of the box seat wiring information:
Application data
Serial communication parameters: 57600bps (Software can be set), N, 8, 1.
Interface definition of Serial communication cable DB9.
| Pin |
Symbol |
Comment |
| 1 |
NC |
Reserved |
| 2 |
TXD |
TXD of RS232 |
| 3 |
RXD |
RXD of RS232 |
| 4 |
NC |
Reserved |
| 5 |
GND |
GND |
| 6 |
NC |
Reserved |
| 7 |
NC |
Reserved |
| 8 |
NC |
Reserved |
| 9 |
NC |
Reserved |
Serial communication agreement please reference user's manual of ZT-RY-401 reader/writer.
After equipped with infrared controller, the communication parameter is:38400 BPS ,E,8.1, Then the serial communication protocol please reference user manual of infrared controller ZT-RY-808
