| home > price > UHF RFID reader | writer > long/middle distance reader / writer price |
 |
| |
|
| |
Long/Middle distance reader/writer price |
| |
|
| |
|
| |
The following quotation may be adjusted as the Exchange Rate varies, please reconfirm the prices with us. please contact us. |
| |
|
| |
product model |
parameter |
Product
Picture |
specifications |
price
(USD/set) |
| ZT-STU-8280A |
1.Frequency Range:
ISM 902~928MHZ (FCC) or 865~868MHz (EU)
or other frequency range
( Ajustable for local regulations);
2.Tag protocols:
ISO18000-6B,EPC Class 1, EPC Class 1 GEN 2;
3.Operating Method:
FHSS or fixed frequency(setted by software);
4.Power smoothness: < 0.5 DB;
5.RF power range: 0~30 dBm, Adjustable by software;
6.Identify tag mode: Identify tag mode can be setted as:
Reads the tag in fixed time automatically
or read tag after external triggering or software command;
7.Identify tag time: <10ms(Identify single tag);
8.Reading/Writing tag time:
No more than 10ms every 8 bytes when reading,
25ms every 4bytes when writing;
9.Work status indication: Buzzer;
10.Reading tag distance: More than 5m when reading;
11.Communication interface:
RS232 / RS485 / Wiegand26 / Wiegand34;
12.Input/output: 1 road trigger input and 1 road relay output;
13.Power supply: DC 7.5V~12V, 3A;
14.Antenna Power: 1W(Through the software can be adjusted);
15.Size: 280 × 280 × 45 mm;
16.Package dimension: 430 × 330 × 150 mm;
17.Package Weight: 2.5 kg |
|
8dBi circular polarization antenna
Wiegand / RS232 / RS485 |
89.00 |
| ZT-STU-8280B |
1.Frequency Range:
ISM 902~928MHZ (FCC) or 865~868MHz (EU)
or other frequency range
( Ajustable for local regulations);
2.Tag protocols:
ISO18000-6B,EPC Class 1, EPC Class 1 GEN 2;
3.Operating Method: FHSS or fixed frequency
(setted by software);
4.Antenna ports: Built-in 8 dbi circular polarization antenna;
5.Power smoothness: < 0.5 DB;
6.RF power range: 0~30 dBm, Adjustable by software;
7.Identify tag mode: Identify tag mode can be setted as:
Reads the tag in fixed time automatically
or read tag after external triggering or software command;
8.Identify tag time: <10ms(Identify single tag);
9.Reading/Writing tag time:
No more than 10ms every 8 bytes when reading,
25ms every 4bytes when writing;
10.Work status indication: Buzzer;
11.Reading tag distance: More than 5m when reading;
12.Communication interface:
RJ45(TCP/IP) / RS232 / Wiegand26/32/34;
13.Input/output: 1 road trigger input and 1 road relay output;
14.Power supply: DC 7.5V~12V, 3A;
15.Antenna Power:
1W(Through the software can be adjusted);
16.Size: 280 × 280 × 45 mm;
17.Package dimension: 430 × 330 × 150 mm;
18.Package Weight: 2.5 kg |
|
8dBi circular polarization antenna
Wiegand / RS232 / RJ45(TCP/IP) |
119.00 |
| ZT-STU-8280C |
1.Frequency Range:
ISM 902~928MHZ (FCC) or 865~868MHz (EU)
or other frequency range
( Ajustable for local regulations);
2.Tag protocols:
ISO18000-6B,EPC Class 1, EPC Class 1 GEN 2;
3.Operating Method:
FHSS or fixed frequency(setted by software);
4.Power smoothness: < 0.5 DB;
5.RF power range: 0~30 dBm, Adjustable by software;
6.Identify tag mode: Identify tag mode can be setted as:
Reads the tag in fixed time automatically
or read tag after external triggering or software command;
7.Identify tag time: <10ms(Identify single tag);
8.Reading/Writing tag time:
No more than 10ms every 8 bytes when reading,
25ms every 4bytes when writing;
9.Work status indication: Buzzer;
10.Reading tag distance: More than 5m when reading;
11.Communication interface:
RS232 / RS485 / Wiegand26 / Wiegand34;
12.Input/output: 1 road trigger input and 1 road relay output;
13.Power supply: DC 7.5V~12V, 3A;
14.Antenna Power: 1W(Through the software can be adjusted);
15.Size: 280 × 280 × 45 mm;
16.Package dimension: 430 × 330 × 150 mm;
17Package Weight: 2.5 kg; |
|
8dBi circular polarization antenna
(Wiegand / RS232 / RS485)
|
83.00 |
| ZT-STU-8280W |
1.Frequency Range:
ISM 902~928MHZ (FCC) or 865~868MHz (EU)
or other frequency range
( Ajustable for local regulations);
2.Tag protocols:
ISO18000-6B,EPC Class 1, EPC Class 1 GEN 2;
3.Operating Method:
FHSS or fixed frequency
(setted by software);
4.Power smoothness: < 0.5 DB;
5.RF power range: 0~30 dBm, Adjustable by software;
6.Identify tag mode: Identify tag mode can be setted as:
Reads the tag in fixed time automatically
or read tag after external triggering or software command;
7.Identify tag time: <10ms(Identify single tag);
8.Reading/Writing tag time:
No more than 10ms every 8 bytes when reading,
25ms every 4bytes when writing;
9.Work status indication: Buzzer;
10.Reading tag distance: More than 5m when reading;
11.Communication interface: WIFI / RS232 / Wiegand;
12.Input/output: 1 road trigger input and 1 road relay output;
13.Power supply: DC 7.5V~12V, 3A;
14.Antenna Power: 1W(Through the software can be adjusted);
15.Size: 280 × 280 × 45 mm;
16.Package dimension: 430 × 330 × 150 mm;
17Package Weight: 2.5 kg; |
|
8dBi circular polarization antenna
WIFI / Wiegand / RS232 |
119.00 |

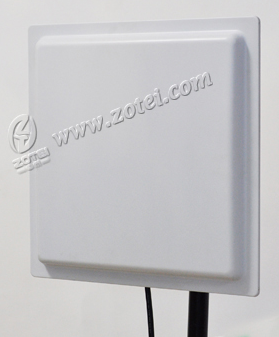

| ZT-STU-8290A |
1.Tag protocols:
ISO18000-6B,EPC Class 1, EPC Class 1 GEN 2;
2.Operating Method: FHSS or fixed frequency
(setted by software);
3.Antenna ports: Built-in 12 dbi vertical polarization antenna;
4.Power smoothness: < 0.5 DB;
5.RF power range: 0~30 dBm, Adjustable by software;
6.Identify tag mode: Identify tag mode can be setted as:
Reads the tag in fixed time automatically
or read tag after external triggering or software command;
7.Identify tag time: <10ms(Identify single tag);
8.Reading/Writing tag time:
No more than 10ms every 8 bytes when reading,
25ms every 4bytes when writing;
9.Work status indication: Buzzer;
10.Reading tag distance: More than 15m when reading;
11.Communication interface:
RS485 / RS232 / Wiegand26 / Wiegand34;
12.Input/output: 1 road trigger input and 1 road relay output;
13.Power supply: DC 7.5V~12V, 3A;
14.Antenna Power: 1W(Through the software can be adjusted);
15.Size: 450 × 450 × 50 mm;
16.Package Size:
61cm × 50cm × 11cm (24.02in × 19.69in × 4.33in);
17.Package Weight: 5kg; |
|
12dBi vertical antenna
Wiegand / RS232 / RS485 |
117.00 |
| ZT-STU-8290B |
1.Frequency Range:
ISM 902~928MHZ (FCC) or 865~868MHz (EU)
or other frequency range
( Ajustable for local regulations);
2.Tag protocols:
ISO18000-6B,EPC Class 1, EPC Class 1 GEN 2;
3.Operating Method:
FHSS or fixed frequency(setted by software);
4.Antenna ports: Built-in 12 dbi vertical polarization antenna;
5.Power smoothness: < 0.5 DB;
6.RF power range: 0~30 dBm, Adjustable by software;
7.Identify tag mode:
parameter
Identify tag mode can be setted as:
Reads the tag in fixed time automatically
or read tag after external triggering or software command;
8.Identify tag time: <10ms(Identify single tag);
9.Reading/Writing tag time:
No more than 10ms every 8 bytes when reading,
25ms every 4bytes when writing;
10.Work status indication: Buzzer;
11.Reading tag distance: More than 15m when reading;
12.Communication interface:
RJ45(TCP/IP) / RS232 / Wiegand26/32/34;
13.Input/output: 1 road trigger input and 1 road relay output;
14.Power supply: DC 7.5V~12V, 3A;
15.Antenna Power: 1W(Through the software can be adjusted);
16.Size: 450 × 450 × 50 mm;
17.Package Size: 61cm × 50cm × 11cm
(24.02in × 19.69in × 4.33in);
18.Package Weight: 5kg; |
|
12dBi vertical antenna
Wiegand / RS232 / RJ45
(TCP/IP)
|
195.00 |
| ZT-STU-8288A |
1.Working Frequency:902~928 MHz or 865~868MHz
2.Protocol:ISO18000-6C(EPC C1 GEN2)
3.Interface: RS232, RS485, Wiegand
4.Radio frequency power:0dBm～30dBm(Adjustable)
5.Software & SDK:DEMO and C#,VC,VB,Java,DELPH, etc.
6.Encryption:Can be directly encrypted, copy prevention.
7.Reading range:
stable reading range 12~15M(Depends on tag&environment)
8.Industrial lightning protection:
6000V industrial lightning protection
9.Low temperature protection:
Northeast,Northwest extremely cold region,
low temperature protection
10.Frequency modulation way:
Broad spectrum frequency hopping or fixed frequency
11.Input/output port:
Two-way relay output(customized), one-way trigger input
12.Antenna gain: 10dBi polarization
13.Working way: Buzzer & LED
14.Power:12V/3A Adaptor
15.Product size:420x240x50mm
16.Package size:600x310x110mm
17.Net weight:4KG
18.Shell material:ABS
19.Working temperature:-20℃~+65℃
20.Storage temperature:-45℃~+95℃ |
|
Wiegand / RS232 / RS485 |
142.00 |
| ZT-STU-9282 |
1.Working frequency:902～928 MHZ,865~868MHZ
2.Chip:IMPINJ R2000
3.Protocol:ISO18000-6C(EPC G2)
4.Software:Provide C #, VC development of routines
5.SDK:Provides SDK with programming samples
6.Communication port:RS232,
TCP/IP(WG / WIFI customizable)
7.Reading Range:Stable reading range 10M
8.Tags handling volume:Reading and writing0-100 tag
(Depends on tgs)
9.Working temperature:-40℃~+65℃
10.RSSI:RSSI signal strength detection label
11.Power:DC7.5-12V,3A
12.Weight:5KG
13.Size:220×220×50MM |
|
Stable reading range 10M
Chip: IMPINJ R2000
Wiegand / RS232 / RJ45
(TCP/IP) |
375.00 |
| ZT-STU-9292 |
1.Working frequency:902～928 MHZ,865~868MHZ
2.Chip:IMPINJ R2000
3.Protocol:ISO18000-6C(EPC G2)
4.Software:Provide C #, VC development of routines
5.SDK:Provides SDK with programming samples
6.Communication port:RS232, TCP/IP(WG / WIFI customizable)
7.Reading Range:Stable reading range 25M
8.Tags handling volume:
Reading and writing0-100 tag(Depends on tgs)
9.Working temperature:-40℃~+65℃
10.RSSI:RSSI signal strength detection label
11.Power:DC7.5-12V,3A
12.Weight:5KG
13.Size:450×450×50MM |
|
Stable reading range 25M
Chip: IMPINJ R2000
Wiegand / RS232 / RJ45
(TCP/IP) |
458.00 |

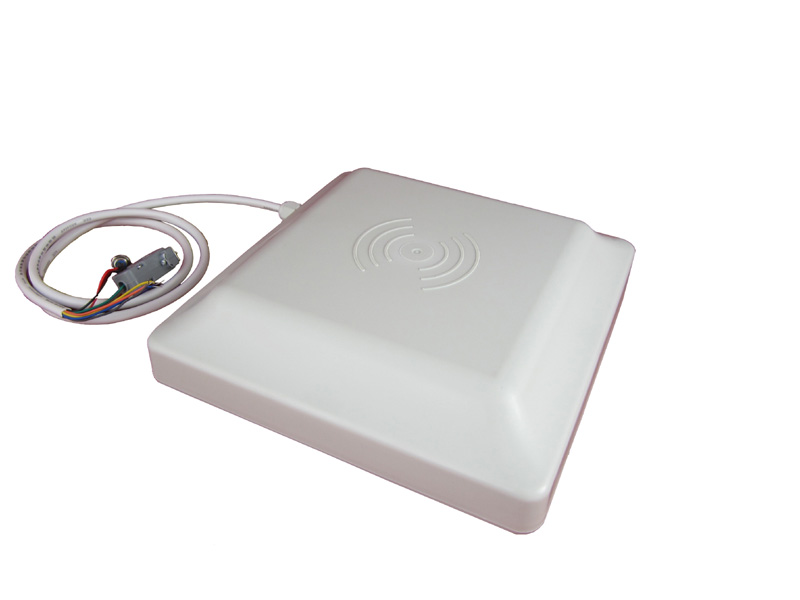

| ZT-RY-101(8db) |
1. Frequency Range :
902～928MHz or 865～868MHz
(Adjustable for local regulations)
2. Read/Write Range :
8dbi antenna configuration,
reading distance 0-5M (adjustable)
3. Support Protocol : ISO 18000-6B,EPC CLASS1 Gen2.
4. Interface : RS232, RS485 and Wiegand.
5. Operating Method : FHSS or fixed frequency.
6. Working Mode : automatic,
response (interaction) and trigger mode etc.
7. Output Power : maximum 30dbm (adjustable)
8. DLL & Demo source code can be provided,
and supports C++/VB/VC/C#/JAVA languages
secondary development.
9. Low power consumption , single 9V/12V power supply.
10. Effective distance is depends to protocol format,
external antenna, RFID tag and working environment.
11. Size : 235mm×235mm×57mm.
12. Gross Weight : 1.5KG
13. Circular polarization. |
|
8dBi circular polarization antenna
Wiegand / RS232 / RS485 |
98.00 |

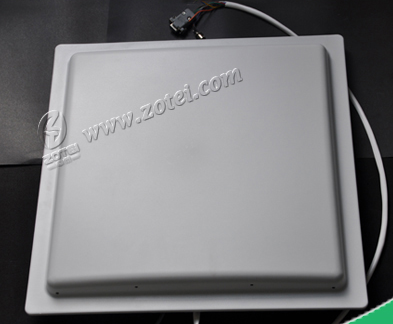

| ZT-RY-101-LAN |
1. Frequency Range :
902～928MHz or 865～868MHz(Adjustable for local regulations)
2. Read/Write Range :
8dbi antenna configuration, reading distance 0-5M.
3. Support Protocol : ISO 18000-6B, EPC CLASS1 Gen2.
4. Interface : RS232/485, Wiegand, RJ45 and Enethnet port.
5. Operating Method : FHSS or fixed frequency.
6. Working Mode :
automatic, response (interaction) and trigger mode.
7. Output Power : maximum 30dbm (adjustable)
8. DLL & Demo source code can be provided,
and supports C++/VB/VC/C#/JAVA languages
secondary development.
9. Low power consumption , single 9V/12V power supply.
10. Effective distance is depends to protocol format,
external antenna, RFID tag and working environment.
11. 235mm×235mm×57mm.
12. Gross Weight : 1.5KG
13. Circular polarization antenna. |
|
8dBi circular polarization antenna
Wiegand / RS232 / RS485 / RJ45
(TCP/IP) |
142.00 |
| ZT-RY-101-WIFI |
1. Frequency Range :
902～928MHz or 865～868MHz
(Adjustable for local regulations)
2. Read/Write Range :
8dbi antenna configuration, reading distance 0-5M.
3. Support Protocol : ISO 18000-6B, EPC CLASS1 Gen2.
4. Interface : RS232/485, Wiegand and WIFI.
5. Operating Method : FHSS or fixed frequency.
6. Working Mode :
automatic,response (interaction) and trigger mode.
7. Output Power : maximum 30dbm (adjustable)
8. DLL & Demo source code can be provided,
and supports C++/VB/VC/C#/JAVA languages
secondary development.
9. Low power consumption , single 9V/12V power supply.
10. Effective distance is depends to protocol format,
external antenna, RFID tag and working environment.
11. Size : 235mm×235mm×57mm
12. Gross Weight : 1.5KG
13. Circular polarization. |
|
8dBi circular polarization antenna
Wiegand / RS232 / RS485 / WIFI |
161.00 |
| ZT-RY-201/R |
1. Frequency Range :
902～928MHz or 865～868MHz
(Adjustable for local regulations)
2. Read/Write Range :
8dbi antenna configuration, reading distance 0-6M.
3. Dual Antenna :Polling mode,
without disturbing each other when
two antennas work simultaneously.
4. Support Protocol : ISO 18000-6B, EPC CLASS1 Gen2.
5. Interface : RS232/485, Wiegand and WIFI.
6. Operating Method : FHSS or fixed frequency.
7. Working Mode : automatic,
response (interaction) and trigger mode.
8. Output Power : maximum 30dbm (adjustable)
9. DLL & Demo source code can be provided,
and supports C++/VB/VC/C#/JAVA languages
secondary development.
10. Low power consumption , single 9V/12V power supply.
11. Effective distance is depends to protocol format,
external antenna, RFID tag and working environment.
12. Size : 255mm×255mm×57mm*2
13. Gross Weight : 3KG
14. Circular polarization. |
|
8dbi dual antenna
Support RS232,
RS485, Wiegand, WIFI
Built in module
(optional domestic or IMPINJ R2000) |
|

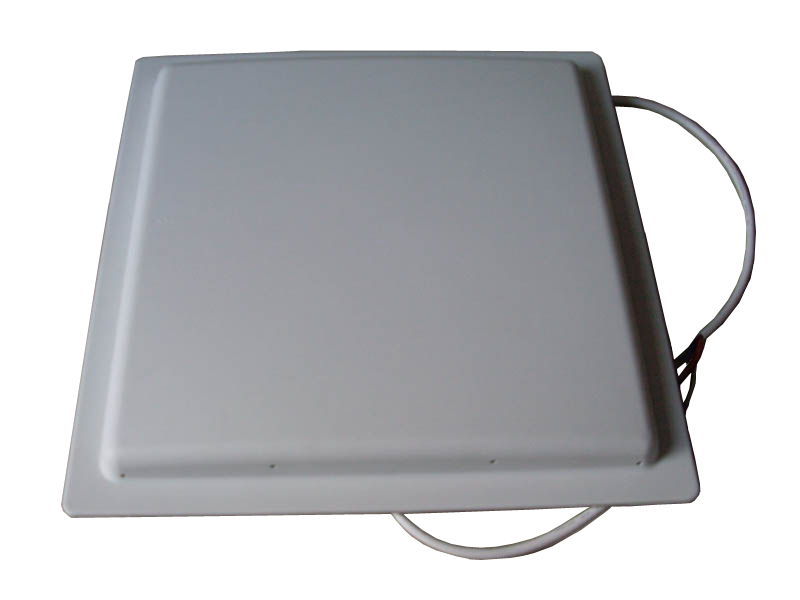

| ZT-RY-102(12db) |
1. Frequency Rage :
902～928MHz or 865～868MHz
(Adjustable for local regulations)
2. Read/Write Range :
12dbi antenna configuration, reading distance 0-12M.
3. Support Protocol : ISO 18000-6B, EPC CLASS1 Gen2.
4. Interface :
RS232/485, Wiegand/customizable TCP/IP,
Enethnet Port.
5. Operating Method : FHSS or fixed frequency.
6. Working Mode :
automatic, response (interaction) and trigger mode.
7. Output Power : maximum 30dbm (adjustable)
8. DLL & Demo source code can be provided,
and supports C++/VB/VC/C#/JAVA languages
secondary development.
9. Low power consumption , single 9V power supply.
10. Effective distance is depends to protocol format,
external antenna, RFID tag and working environment.
11. Size : 445mmx445mmx55mm.
12. Gross Weight : 5KG
13. linear polarization. |
|
12dBi Line polarization antenna
Wiegand / RS232 / RS485 |
168.00 |
| ZT-RY-102-LAN |
1. Frequency Range :
902～928MHz or 865～868MHz
(Adjustable for local regulations)
2. Read/Write Range :
12dbi antenna configuration, reading distance 0-12M.
3. Support Protocol : ISO 18000-6B, EPC CLASS1 Gen2.
4. Interface : Wiegand/RS232/RS485/RJ45(TCP/IP).
5. Operating Method : FHSS or fixed frequency.
6. Working Mode : automatic,
response (interaction) and trigger mode.
7. Output Power : maximum 30dbm (adjustable)
8. DLL & Demo source code can be provided,
and supports C++/VB/VC/C#/JAVA languages
secondary development.
9. Low power consumption , single 9V power supply.
10. Effective distance is depends to protocol format,
external antenna, RFID tag and working environment.
11. Size : 445mmx44
5mmx55mm.
12. Gross Weight : 5KG
13. linear polarization. |
|
12dBi Line polarization antenna
Wiegand / RS232 / RS485 / RJ45
(TCP/IP) |
195.00 |
|
| |
|
|
