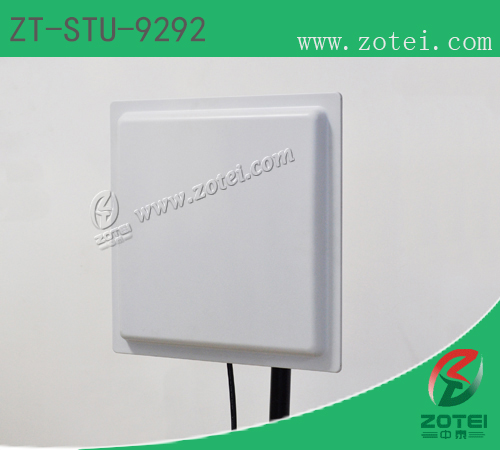

IMPINJ R2000 Long range UHF RFID Reader / writer (Product model: ZT-STU-9292) |
| |
|
| |
|
| |
|
| |
|
| |
 |
| |
|
| |
 |
| |
|
| |
Products Features
> Optional Module : WiFi / GPRS / RS485 / Wiegand;
> EPC Class 1 Gen2 UHF RFID protocol fully supported , authentication under intense reading/writing as well
>
Using sophisticate data processing method, efficiently managing tag data through local network’s volume data
> Highly adjustable buffering and tag filter mode, cuts down excessive tags’ reading and writing, which can lay down network’s data flow and server’s heavy load.
> Carry out a powerful and stable performance under intense reading and writing.
> Incredible speed of sending and receiving instructions. That which can create different combinations in order to reach a best performance to serve by setting different parameters such as:tags download instruction speed, the reflectance of tag-to-reader, modulate setting and reflex modulation.
Working frequency |
902～928 MHZ,865~868MHZ |
Chip |
IMPINJ R2000 |
Protocol |
ISO18000-6C(EPC G2) |
Software |
Provide C #, VC development of routines |
SDK |
Provides SDK with programming samples |
Communication port |
RS232, TCP/IP(WG / WIFI customizable) |
Reading Range |
Stable reading range 25M |
Tags handling volume |
Reading and writing0-100 tag(Depends on tgs) |
Working temperature |
-40℃~+65℃ |
RSSI |
RSSI signal strength detection label |
Power |
DC7.5-12V,3A |
Weight |
5KG |
Size |
450×450×50MM |
Applications
> Intelligent traffic such as ETC, customes border-crossing, parking lot, automatic weighing etc;
> Logistics such as container management, pallet management, asset tracing etc;
> Ticketing& access control;
> Pharmaceuticals such as medical waste management ,etc.
Download
Software Development Kit |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
