  Mid-range UHF RFID Reader / writer (Product model: ZT-RY-101(8dBi))




  ZT-RY-101(passive UHF RFID Reader)





ZT-RY-101 is a high performance UHF RFID integrated reader. It is designed upon fully self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, and anti-counterfeit and industrial production process control system.

Standard Product:
ZT-RY-101 host (Wiegand, RS232, 485), one set of connection, one dedicated power.

FEATURES
 > Self-intellectual property ;
 > Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag ;
 > 902~928MHz frequency band(frequency customization optional);
 > FHSS or Fix Frequency transmission;
 > RF output power up to 30dbm(adjustable);
 > 8 dbi antenna configuration, typical reading distance ≥5 m;
 > Support auto-running, interactive and trigger-activating work mode;
 > Low power dissipation with single +9 DC power supply;
 > Support RS232, RS485, Wiegand interface;
 > Provide DLL and Demonstration Software Source code to facilitate further development.
 > Size: H235mm × W235mm × T57mm, Circular polarization, weight: 2.5kg.
 > Package dimension: 430 × 330 × 150 mm.

CHARACTERISTICS
 > Absolute Maximum Rating

ITEM SYMBOL VALUE UNIT
Power Supply VCC 16 V
Operating Temp TOPR -10~+60
Storage Temp TSTR -25~+80

 > Electrical and Mechanical Specification
    Under TA=25℃,VCC=+9V unless specified
ITEM

SYMBOL

MIN TYP MAX UNIT
Power Supply VCC 8 9 12 V
Current Dissipation IC   350 650 mA
Frequency FREQ 902   928 MHz
Effective Distance DIS 300 500   cm

INTERFACE
ITEM

COMMENT

Red +9V
Black GND
Yellow Wiegand DATA0
Blue Wiegand DATA1
Purple RS485 R+
Orange RS485 R-
Brown GND
White RS232 RXD
Green RS232 TXD
Grey Trigger input ( TTL level )

   * Effective distance depends on antenna, tag and environment.

Download
  Software Development Kit

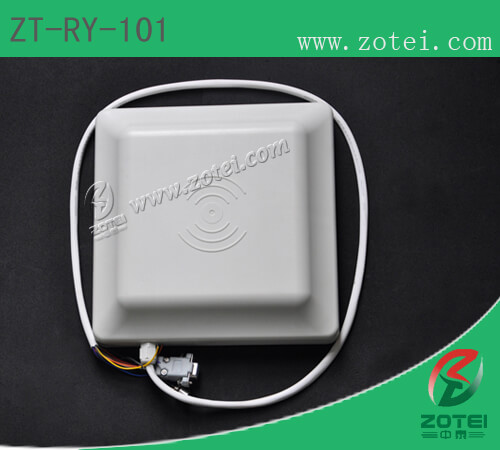

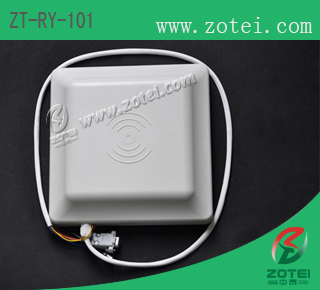

ZT-RY-101(passive UHF RFID Reader)   ZT-RY-101(passive UHF RFID Reader)
