  Long range UHF RFID Reader / writer (Product model: ZT-RY-102-LAN)

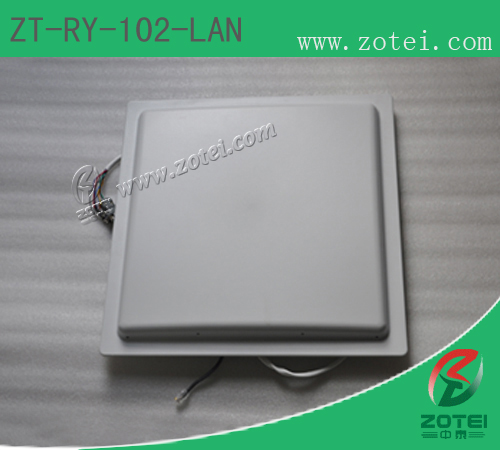

  ZT-RY-102-LAN (Integrated UHF RFID Reader)





ZT-RY-102-LAN is a high performance UHF RFID integrated reader. It is designed upon fully self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, and anti-counterfeit and industrial production process control system.

Standard Product:
ZT-RY-102 host (Wiegand, RS232, 485, RJ45), one set of connection, one dedicated power.

FEATURES
 > Self-intellectual property;
 > Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag ;
 > 902~928MHz frequency band(frequency customization optional);
 > FHSS or Fix Frequency transmission;
 > RF output power up to 30dbm(adjustable);
 > 12dbi antenna optional with effect distance more than 15m;
 > Support auto-running, interactive and trigger-activating work mode;
 > Low power dissipation with single +9 DC power supply;
 >Support RS232, RS485, Wiegand interface, RJ45(TCP/IP);
 > Provide DLL and Demonstration Software Source code to facilitate further development.
 > Size: H445mm × W445mm × T55mm, Line polarization, weight: 5kg.

CHARACTERISTICS
 > Absolute Maximum Rating

ITEM SYMBOL VALUE UNIT
Power Supply VCC 16 V
Operating Temp TOPR -10~+60
Storage Temp TSTR -25~+80

 > Electrical and Mechanical Specification
    Under TA=25℃,VCC=+9V unless specified
ITEM

SYMBOL

MIN TYP MAX UNIT
Power Supply VCC 8 9 12 V
Current Dissipation IC   350 650 mA
Frequency FREQ 902   928 MHz
Effective Distance DIS 300 500   cm

INTERFACE
ITEM

COMMENT

Red +9V
Black GND
Yellow Wiegand DATA0
Blue Wiegand DATA1
Purple RS485 R+
Orange RS485 R-
Brown GND
White RS232 RXD
Green RS232 TXD
Grey Trigger input ( TTL level )
Network interface RJ45

   * Effective distance depends on antenna, tag and environment.


Download
  Software Development Kit
