| home > price > UHF RFID reader | writer > split-type reader / writer price |
 |
| |
|
| |
Split-type reader / writer price |
| |
|
| |
|
| |
The following quotation may be adjusted as the Exchange Rate varies, please reconfirm the prices with us. please contact us. |
| |
|
| |
product model |
parameter |
Product
Picture |
specifications |
price
(USD/set) |
| ZT-STU-8220 |
1.Frequency Range:
ISM 902~928MHZ (FCC) or 865~868MHz (EU)
or other frequency range ( Ajustable for local regulations);
2.Tag protocols:
ISO18000-6B,EPC Class 1, EPC Class 1 GEN 2;
3.Operating Method:
FHSS or fixed frequency(setted by software);
4.Power smoothness: < 0.5 DB;
5.RF power range: 0~30 dBm, Adjustable by software;
6.Identify tag mode: Identify tag mode can be setted as:
Reads the tag in fixed time automatically
or read tag after external triggering or software command;
7.Identify tag time: <10ms(Identify single tag);
8.Reading/Writing tag time:
No more than 10ms every 8 bytes when reading,
25ms every 4bytes when writing;
9.Work status indication: Buzzer;
10.Reading tag distance: More than 1.5m when reading;
11.Communication interface:
RS232 / RS485 / Wiegand26 / Wiegand34;
12.Power supply: DC 7.5V~12V, 3A;
13.Antenna Power:
1W(Through the software can be adjusted);
14.Size: 160 × 110 × 40 mm;
15.Antenna size: 80 × 80× 5 mm;
16.Package Weight: 1kg; |
 |
Wiegand / RS232 / RS485 |
98 |

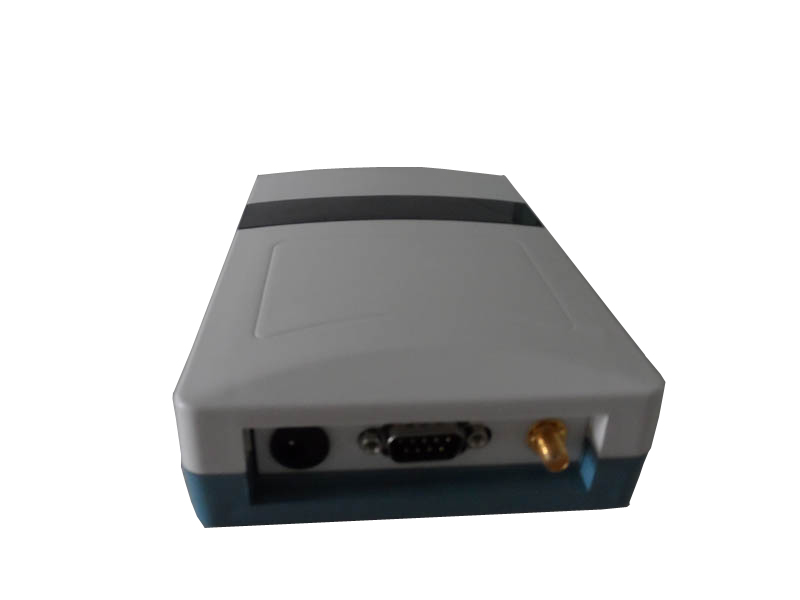

| ZT-RY-107/R |
1. Frequency Range :
902～928MHz or 865～868MHz
(Adjustable for local regulations).
2. Reading Range :
related to the matching antenna
(the antenna can be selected as required).
3. Support Protocol:
UHF EPC Gen2(ISO 18000-6C), ISO 18000-6B.
4. Interface :
RS232,Wiegand
(with Enethnet port or RJ45 isavailable).
5. Operating Method : FHSS or fixed frequency .
6. Output Power : maximum 30dbm (adjustable).
7. DLL can be provided,
and supports C++/VB/VC/C#/JAVA languages
secondary development.
8. Low power consumption , single 9V power supply.
9. Output format and parameters
can be configured in active working mode.
10. Size : 160mmx110mmx35mm.
11. Net Weight : 200g. |
 |
Wiegand / RS232
Built in module
(optional domestic or IMPINJ) |
98 |

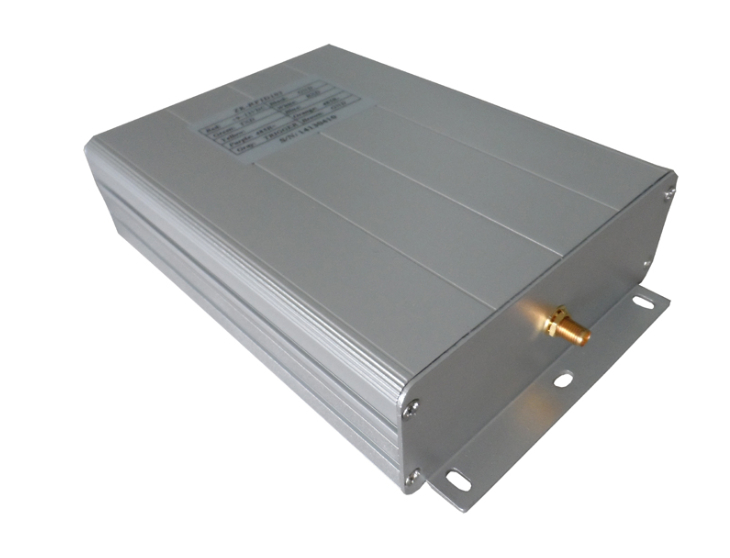

| ZT-RY-103/R |
1. Frequency Range :
902～928MHz or 865～868MHz(Adjustable for local regulations)
2. Reading Range : 0-12M, related to the matching antenna
(the antenna can be selected as required)
3. Support Protocol : UHF EPC Gen2(ISO 18000-6C), ISO 18000-6B.
4. Interface : RS232 , RS485.
5. Operating Method : FHSS or fixed frequency.
6. Output Power : maximum 30dbm (adjustable)
7. DLL can be provided,
and supports C++/VB/VC/C#/JAVA languages
secondary development.
8. Low power consumption ,
single 9V/12V power supply.
9. Working Mode :
response (interaction) and active work mode.
10. Output format and parameters
can be configured in active working mode.
11. Sealed packing with aluminum alloy,
which can effectively prevent external interference. |
 |
Wiegand / RS232 / RS485
Built in module
(optional domestic or IMPINJ) |
89 |
|
| |
|
|
