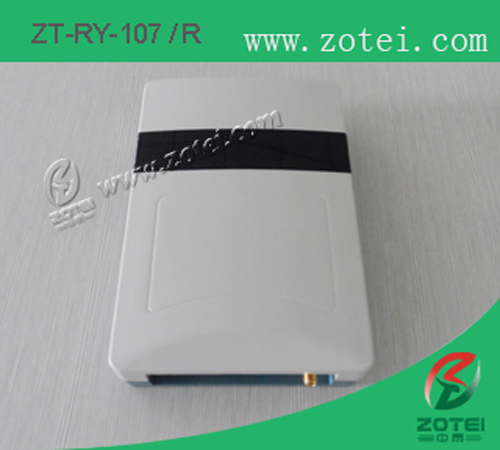

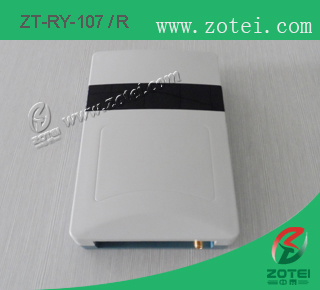

ZT-RY-107/R is a high performance UHF RFID integrated reader. It is designed upon fully self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, and anti-counterfeit and industrial production process control system.

Standard Product:
ZT-RY-402 host (Wiegand, RS232, 485), one dedicated power.(antenna not included, need to be purchased separately)

FEATURES
 > Self-intellectual property ;
 > Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag ;
 > 902~928MHz frequency band(frequency customization optional);
 > FHSS or Fix Frequency transmission;
 > RF output power up to 30dbm(adjustable);
 > 8 dbi antenna configuration, typical reading distance ≥ 5 m;
 > Support auto-running, interactive and trigger-activating work mode;
 > Low power dissipation with single +9 DC power supply;
 > Support RS232, Wiegand interface;
 > Provide DLL and Demonstration Software Source code to facilitate further development.
> Size: H160mm × W110mm × T40mm, Antenna Size: H235mm × W235mm × T57mm, Circular polarization, weight: 4.5kg.

CHARACTERISTICS
 > Absolute Maximum Rating
