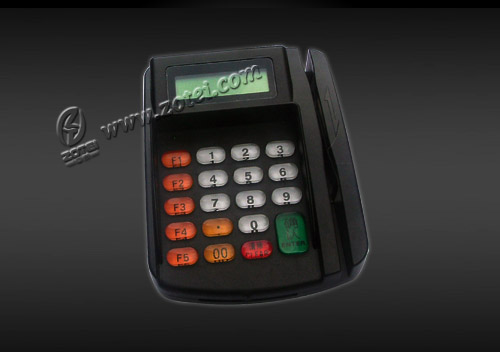

Multi-specific keyboard (E-POS PIN Pad) : YD-800 series |
| |
|
| |
|
| |
|
| |
 |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Detailed description of YD-800 series: |
| |
|
| |
> YD800 series of electronic payment terminals are designed for high-tech products used by financial |
| |
counters, set of magnetic card, IC card, SAM card, LED display and pin pad in one. On the one |
| |
hand it has magnetic card function, can read ISO standard of 2, 3 magnetic card, on the other hand |
| |
with the keyboard function, and the Keyboard containing standard 8-bit DES. |
| |
> YD-800 has a built-in SAMRT Card slot , support accord with ISO7816 agreement T = 0 and T = 1 CPU |
| |
card, support simes4432/4442, simes4418/4428,1604/1604B and 1608 card |
| |
> YD800 may be equipped with one SAM card support with ISO7816 protocol T = 0 and T = 1 CPU card. |
| |
> YD800 configure a 122*32 Graphic LCD, can display 16*16 dot matrix characters 7 and 8*16 characters 15 |
| |
> YD-800 Has the rich command set , It supports secondary key management, flexible keyboard operation |
| |
orders, also support PINBLOCK9.8 amount credit standards. |
| |
|
|
Technical indicators |
communication mode |
RS232 agreement, 9600BPS 8 bits of data bits, no inspection bits. |
Magnetic
card
technical
parameters |
Magnetic card literacy standards |
compatible ISO IBM DIN etc magnetic recording standards. |
Support the magnetic way |
double two, three tracks. |
Magnetic recording density |
second track 75BPI (maximum 40 character), the third track 210BPI (maximum 107 characters) |
Magnetic card standard |
ISO7811/2. |
Head life |
More than 500,000 times |
card feeding speed |
10-120cm/SEC |
IC technical parameters |
IC literacy standards |
ISO7816-1/2/3/4 and EMV international standards, support with most of the bank's card, the logic encryption card. |
Key count |
19 key division by 0-9 keys outside, still include F1 - F5 function keys, removal, 00, decimal and confirm button. |
Power supply |
Don’t need additional 5VDC power supply , by computer USB or
PS / 2 provides+ 5v power supply |
Weight |
about 450g |
Working environment0 |
0-50 ℃ 20-90% RH |
Storage environment
|
- 20-70 ℃ < 90% RH |
Size
|
w165 L120 H55mm |
|
| |
|
