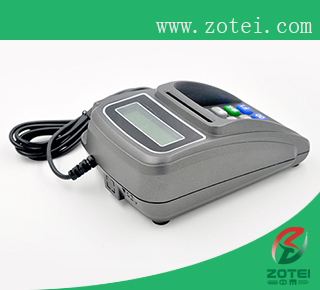

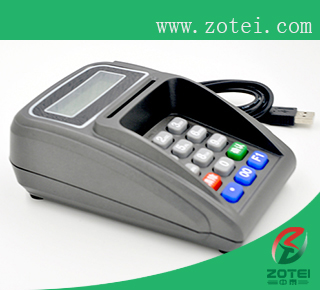

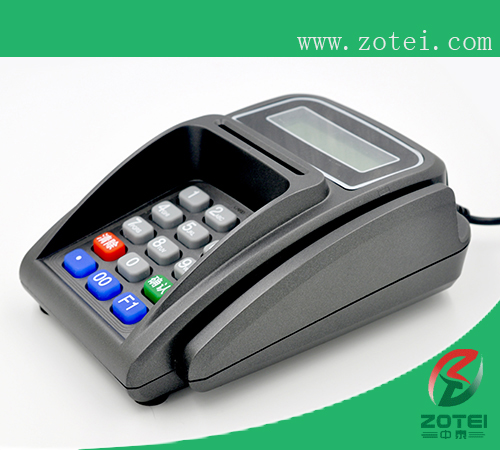

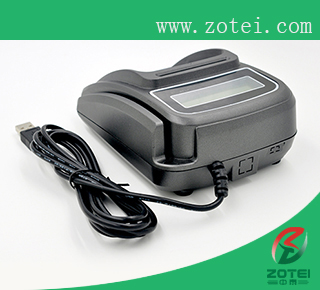

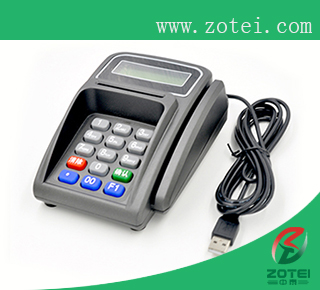

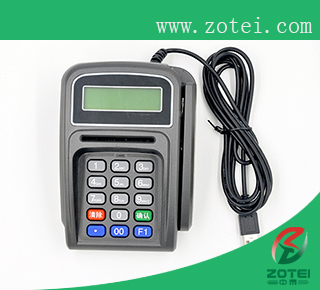

keyboard with magcard reader (USB): YD-750 series

Product features and parameters:

> Set of magnetic card reader and PIN pad in one

> Used in reading and transmitting information to the computer or terminal device

> Support bi-directional swiping card

> Fully compliant with ANSI / ISO technical standards

> Automatic identification ISO, IBM standard data

> Sound and light double hint

> Working Voltage: +5V

> The operating temperature and humidity: 0 ℃ ~ +50 ℃, 20 ~ 90%RH

> Magnetic head life: > 300,000 passes

> Card feeding speed: 10 ~ 100cm/s

> Antistatic Ability: 15000V

> Package Size: 285* 222*175mm

> Weight (Contain the packaging): 0.38Kg

Product Model:

Product Name	Product Model	Read Track	Interface	Dimension (mm)
keyboard with magcard reader	YD-751	1	USB	W110×L150×H60
keyboard with magcard reader	YD-752	2	USB	W110×L150×H60
keyboard with magcard reader	YD-753	1, 2	USB	W110×L150×H60
keyboard with magcard reader	YD-756	2, 3	USB	W110×L150×H60
keyboard with magcard reader	YD-757	1, 2, 3	USB	W110×L150×H60
