Product
Type |
Product Name |
Specifications |
Parameter |
mode |
Product
Picture |

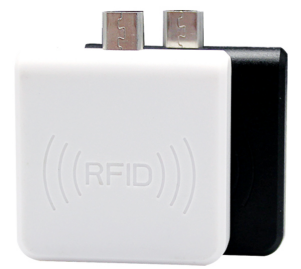

ZT-SMT-R65D |
ID card reader |
interface: Micro-USB
frequency: 125KHz
support chip: TK4100/EM4200 |
product size: 35*35*7mm
package size: 71*71*19mm
weight: 20G(NW)\50G(GW)
power supply: 5V
current: 100mA
environment:
operating temperature: -20℃-70℃
operating humidity: 5%-95%
response time: ＜100ms
color: black or white
operating system：android
reading distance:
0-30mm(read on the front/back);
0-10mm(read on the side)
display:
two LED indicators
(red for mains, green for status) |
R/O |
|
ZT-SMT-R20XD |
ID card reader |
interface: USB
frequency: 125KHz
support chip: TK4100/EM4200 |
operating system:
windows 98\ XP\2000\CE\7\ME
\NT\LIUNX.Android
reading distance: 0~80MM
response time: ＜100ms
response speed: 0.2S
response distance：0.5S
product size: 94*60*10mm
power fetching mode: USB ports |
R/O |
|
ZT-SMT-R10D |
ID card reader |
interface: USB
frequency: 125KHz
support chip: TK4100/EM4200 |
operating system:
Windows98/XP32/XP64/2000/CE/7/ME
/NT/LIUNX/Vista32/Vista64/Android
reading distance: 0~80mm
response time: ＜100ms
response speed: 0.2S
response distance：0.5S
product size: 110*80*26mm
power fetching mode: USB ports
weight: 160G
environment:
operating temperature: -20℃-70℃
operating humidity: 5%-95%
power supply: 5V
current: 100mA
reading distance:
0-30mm(read on the front/back);
0-10mm(read on the side)
display:
two LED indicators
(red for mains, green for status)
Built in controllable LED and buzzer |
R/O |
|
ZT-SMT-R13D |
ID card reader |
interface: PS/2
frequency: 125KHz
support chip: TK4100/EM4200 |
R/O |
ZT-SMT-R11D |
ID card reader |
interface: RS-232
frequency: 125KHz
support chip: TK4100/EM4200 |
R/O |
ZT-SMT-R10DC |
ID+IC card
reader |
interface: USB
protocol: ISO14443A
frequency:
125KHz+13.56MHz
(double frequency)
support chip:
TK4100/EM4200/S50/S70
/FM11RF08/Ntag213/Ultralight |
R/O |
ZT-SMT-R10H |
HID card reader |
HID card reader
frequency: 125KHz
support chip: HID format chip |
R/O |
ZT-SMT-R20D |
ID card reader |
interface: USB
frequency: 125KHz
support chip: TK4100/EM4200 |
operating system:
Windows 98/XP/2000/CE/7/ME
/NT/LIUNX/Android
reading distance: 0~80mm
response time: ＜100ms
response speed: 0.2S
response distance：0.5S
product size: 104*68*10mm
power fetching mode: USB ports
weight: 140G
environment:
operating temperature: -20℃-70℃
operating humidity: 5%-95%
power supply: 5V
current: 100mA |
R/O |
|
ZT-SMT-R21D |
ID card reader |
interface: RS-232
frequency: 125KHz
support chip: TK4100/EM4200 |
R/O |
ZT-SMT-R20H |
HID card reader |
HID card reader
frequency: 125KHz
support chip: HID format chip |
R/O |
ZT-SMT-RP-R2D |
ID card replicator |
ID card replicator
frequency: 125KHz
support chip:
T5577\EM4305\CET5200 |
function:
copy ID card
(copy TK4100 or EM4200 chip card)
support chip: T5577, EM4305,
CET5200, and all compatible chips
power fetching mode: USB ports
with buzzer
(voice prompts when
successful operation) |
R/W |
|
ZT-SMT-S-JR-R2D |
T5577+4305 card
reader & writer |
T5577+4305 card reader & writer
frequency: 125KHz
support chip:
T5577\EM4305\CET5200 |
support chip：EM4305, T5577
power fetching mode: USB ports
communication mode: USB to serial port
provide SDK |
R/W |
|
ZT-SMT-R30D |
ID card reader |
interface: USB
frequency: 125KHz
support chip: TK4100/EM4200 |
operating system:
Windows98/XP32/XP64/2000/CE/7/ME
/NT/LIUNX/Vista32/Vista64/Android
reading distance: 0~80mm
response time: ＜100ms
response speed: 0.2S
response distance：0.5S
product size: 104*68*10mm
power fetching mode: USB ports
weight: 140G
environment:
operating temperature: -20℃-70℃
operating humidity: 5%-95%
power supply: 5V
current: 100mA
display:
two LED indicators
(red for mains, green for status)
Built in controllable LED and buzzer |
R/O |
|
ZT-SMT-R31D |
ID card reader |
interface: RS-232
frequency: 125KHz
support chip: TK4100/EM4200 |
R/O |
ZT-SMT-R30H |
HID card reader |
HID card reader
frequency: 125KHz
support chip: HID format chip |
R/O |
ZT-SMT-R40DB |
ID card reader |
interface: USB
frequency: 125KHz
support chip: TK4100/EM4200
with dial switch |
operating system:
windows 98/XP/2000/CE/7
/NT/LIUNX/Android
reading distance: 0~80mm
response time: ＜100ms
weight: 110G
product size: 105*65*15mm
Built in controllable LED and buzzer
optional: dial switch |
R/O |
|
ZT-SMT-R60D |
ID card reader |
interface: USB
frequency: 125KHz
support chip: TK4100/EM4200 |
operating system:
windows 98/XP/2000/CE/7/NT
/LIUNX/Android
reading distance: 0~80mm
response time: ＜100ms
response speed: 0.2S
response distance：0.5S
weight: 100G
product size: 75*21*7mm
power fetching mode: USB ports
environment:
operating temperature: -20℃-70℃
operating humidity: 5%-95%
display:
two LED indicators
(red for mains, green for status) |
R/O |
|
ZT-SMT-R80D |
ID card reader |
interface: USB
frequency: 125KHz
support chip: TK4100/EM4200 |
reading distance: 20~150mm
two color indication: red and green
response distance：0.5S
power supply: 5V
current: 30-80ma
environment:
operating temperature: -40℃-150℃
operating humidity: 5%-95%
Antistatic interference: ±2.5KV
product size: 105*65*15mm |
R/O |
|

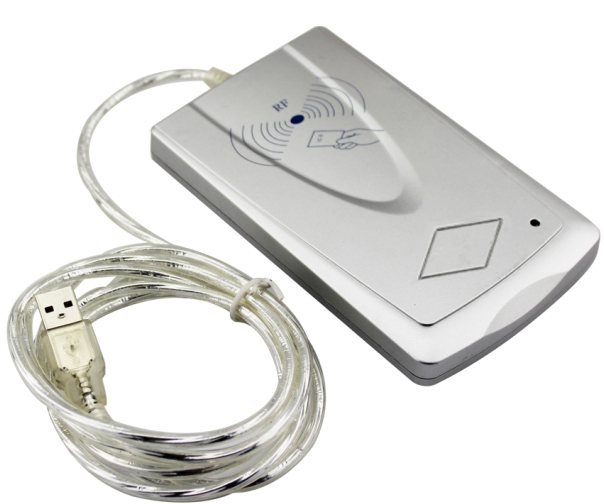

ZT-SMT-R90D |
ID card reader |
interface: USB
frequency: 125KHz
support chip: TK4100/EM4200 |
operating system:
windows98/XP32/XP64/2000/CE/7/ME
/NT/LIUNX/Vista32/Vista64/Android
reading distance: 0~70mm
response time: ＜100ms
communication line length: 1.5m
color: silver
weight: 120G
product size: 133*80*16mm
display:
two LED indicators
(red for mains, green for status)
Built in controllable LED and buzzer |
R/O |
|
ZT-SMT-R95D |
ID card reader |
interface: USB
frequency: 125KHz
support chip: TK4100/EM4200
with keyboard |
operating system:
windows 98/XP/2000/CE/7/ME
/NT/LIUNX/Android
reading distance: 0~80MM
communication line length: 1.5m
Color: black or white
weight: 220G
product size: 133*80*16mm
optional: dial switch/protective cover |
R/O |
|
ZT-SMT-R95DC |
ID+IC card
reader |
interface: USB
protocol: ISO14443A
frequency:
125KHz+13.56MHz
(double frequency)
support chip:
TK4100/EM4200/S50/S70
/FM11RF08/Ntag213/Ultralight
with keyboard |
R/O |

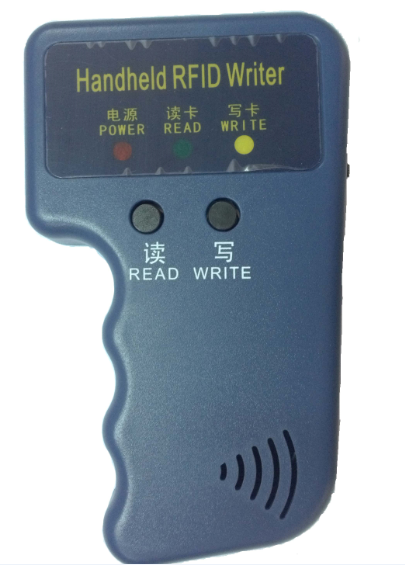

ZT-SMT-RP-SD |
ID card replicator |
ID card replicator
frequency: 125KHz
support chip:
T5577\EM4305\CET5200 |
function: copy ID card
(copy TK4100 or EM4200 chip card)
support:
T5577, EM4305, CET5200,
and all compatible chips
power fetching mode:
2×AAA battery(batteries is not included)
service life:
reproducible 20 thousand times.
voice prompts:
voice prompts at work.
size: 115*70*30mm |
R/W |
|
ZT-SMT-PR-RH |
HID card
replicator |
HID card replicator
frequency: 125KHz
support chip: T5577 |
function: copy HID card
support: T5577 and all compatible chips
power fetching mode:
2×AAA battery(batteries is not included)
service life:
reproducible 20 thousand times.
voice prompts:
voice prompts at work.
size: 115*70*30mm |
R/W |
|
