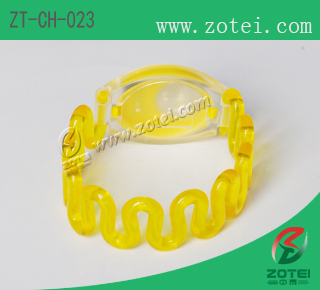

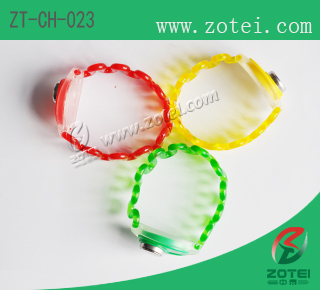

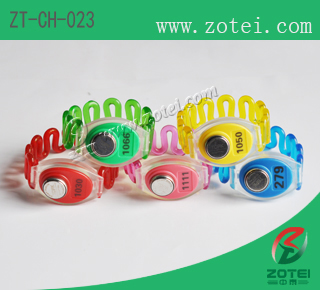

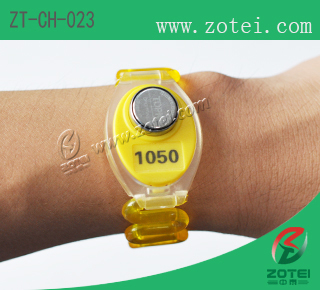

iButton plastic wristband (Ф45mm / Ф65mm , Product model:ZT-CH-023) |
| |
|
| |
|
|
|
Product type |
ZT-CH-023 |
Product Category |
iButton Plastic wristband |
Material |
Plastic |
Size |

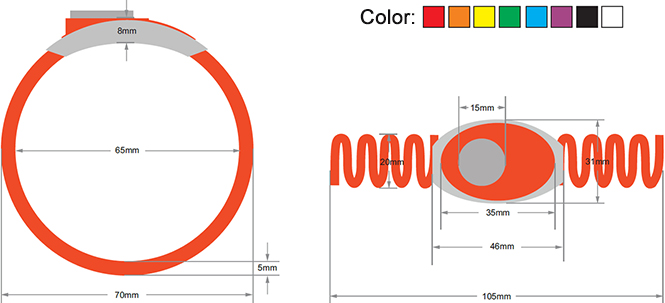

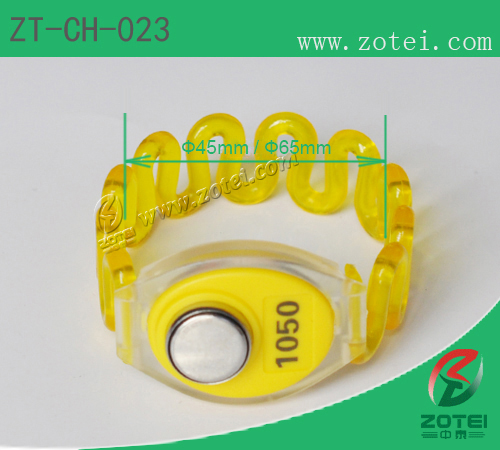

Ф45mm / Ф65mm |
Weight |
18g |
iButton introduction |
iButton Introduction iButton is information button abbreviation, i.e. the information button, information button is similar to the one used in the smart card microchip, but the microchip on the size of 17.35mm × 3.1mm ~ 5.89mm (different functions, different size) of a circular stainless steel button. Information button by Dallas Semiconductor invention and the exclusive production of major equipment and facilities for work in the bad and the harshness of the use of the environment.
iButton is a computer chip of a packing in a 16mm thick stainless steel shell. Because of its unique and durable shell, the latest information can be carried with a person or object anywhere. In fact, steel iButton is rugged enough to withstand a variety of indoor or outdoor harsh environments, making the iButton can be installed almost anywhere. iButton is very compact and lightweight, can be attached to key chains, rings, ring, watch, or other personal items, such as buildings and computers, asset management, and various data logging access is ideal for control in their daily lives. |
iButton Composition |
1. Shell and Grommet iButton with its stainless steel "shell" as an electronic communication interface, each shell has a data contact, referred to as a "cover", as well as a ground contact, known as the "bottom of the box". These contacts are connected to the internal silicon. The lid is the top of the housing; the bottom of the box by the edges and bottom of the shell, including an easy button flange attached to any other object. The two contacts are made of polypropylene buckles isolation
2. 1-Wire interface only iButton with the two interfaces touch, it can be 1-Wire ® protocol to communicate with. 1-Wire interface has two communication rate: standard mode, 16kbps, 142kbps in Overdrive Mode.
3. Address each iButton chip inside has a laser engraved into the unique address can not be changed. The address (such as 2700000095C33108) can be used as a key or identifier for each iButton. |
iButton Parameter |
Read-only: (DS) TM1990A-F5
Read-write type: i1990B-F5
Read and write encrypted: (DS) TM1991L-F5
Read-write type: DS1971-F5 (memory 256, 32 bytes EEPROM storage)
Supporting the use of products: ID card reader (the DS9092), Patrol Block, bracelets, hand, card reader, etc. |
Operating Temperature |
-40℃ ~ +85℃ |
Packing |
Packing: 100pcs/OOP bag. 10 OPP bag/box, 1000pcs/box
Box Size: 490mm* 380mm* 350mm, Box weight: 1kg.
Net: 18kg/box
gross: 19kg/box |
application |
sauna door locks, bath locks, electronic door locks |
|
| |
| |
|
|
|
| |
| |
| |
|
