| home > product > RFID ticket > RFID pasted ticket > ZT-SRE-TCK03 |
 |
| |
|
| |

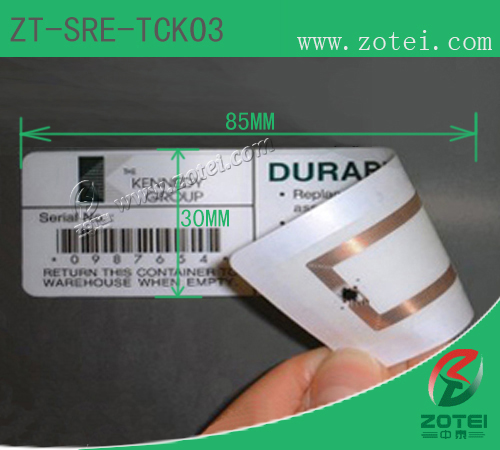

RFID pasted ticket ( Product model: ZT-SRE-TCK03) |
| |
|
| |
|
| |
|
| |
|
Ticket number |
ZT-SRE-TCK03 |
Ticket Category |
pasted type |
Ticket size |
85 * 30mm (size can be customized) |
Ticket thickness |
0.28mm~0.45mm (thickness can be customized) |
Packaging material |
coated paper / thermal paper / PET / PVC |
Inlay material |
PET + AL |
Standard protocol |
ISO 14443A / ISO 15693 / EPC CLASS1 GEN2 / ISO 18000-6C |
Packaging Chip |
packing high-frequency chip:
ultralight / ultralight C / FM11RF08 / MIFARE Classic® 1K / FM11RF32 / MIFARE Classic® 4K / Ntag203 / Ntag213 / Ntag215 / Ntag216 / ICODE SLI / ICODE SLIX
packing Ultra-high -frequency chip:
Alien H3 / Alien H4 / Impinj M4 / Impinj M5 / UCODE G2XM / G2XL |
Operating frequency |
13.56MHz / 860-960MHz |
Operating Temperature |
-30℃~+50℃ |
Storage Temperature |
-40℃~+100℃ |
Erasing times |
≥ 100,000 times |
Data retention period |
≥ 10 years |
Packing |
This ticket roll for shipment |
Product description |
RFID pasted ticket uses the Radio Frequency Identification Technology on adhesive labels. It comes with high intelligent security which is able to prevent forgery by attaching it to your printed entrance pass or working permit. |
Subsequent process |
Ticket surface can offset or silk srceen printing contents, cover film/overlay and UV printing effects etc. Also it can do some special options, such as hot stamping hologram, inkjet serial number, barcode, QR code, ticket price, area code, seat number, time and other variable data. |
Features |
Generally RFID smart label with high flexibility is used in some printed tickets, committee work permits and press cards etc，which can reach high security once it has been attached.
Ticket vice coupons or ticket middle part is embedded with RFID chip and antenna. RFID chip has the unique ID number in the world. ID number can not modify and copy because it was embedded/cured in the chip. The organizers can write their own password into chip so as to realize effective security. |
Application |
Concert, PARTY, train tickets, bus tickets, tourist attractions, sports stadiums, conference venues, cinemas, theaters, large exhibitions, etc. |
|
| |
| |
|
| |
|
|
