      home > product > RFID ticket > RFID folding ticket > ZT-SRB-TCK23

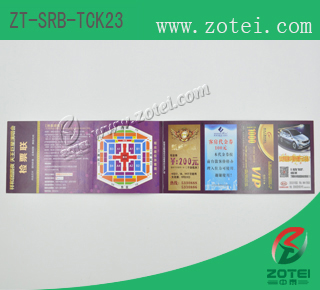

  RFID folding ticket ( Product model: ZT-SRB-TCK23)




RFID folding ticket

Ticket number
ZT-SRB-TCK23
Ticket Category
Folding type (can be folded up and down or left and right)
Ticket size
480* 100mm (size can be customized)
Ticket thickness
0.30mm~0.55mm (thickness can be customized)
Packaging material
coated paper / thermal paper / PET / PVC
Inlay material
PET + AL
Standard protocol
ISO 14443A / ISO 15693 / EPC CLASS1 GEN2 / ISO 18000-6C
Packaging Chip
packing high-frequency chip:
ultralight / ultralight C / FM11RF08 / MIFARE Classic® 1K / FM11RF32 / MIFARE Classic® 4K / Ntag203 / Ntag213 / Ntag215 / Ntag216 / ICODE SLI / ICODE SLIX

packing Ultra-high -frequency chip:
Alien H3 / Alien H4 / Impinj M4 / Impinj M5 / UCODE G2XM / G2XL
Operating frequency
13.56MHz / 860-960MHz
Operating Temperature
-30℃~+50℃
Storage Temperature
-40℃~+100℃
Erasing times
≥ 100,000 times
Data retention period
≥ 10 years
Packing
Ticket is packed by piece and piece.
Product description
The folding types of RFID folding ticket could be divided into up and down folding,left and right folding, also could be multipage typed tickets. There is easy tear line and folding line with the ticket.
Subsequent process
Ticket surface can offset or silk srceen printing contents, cover film/overlay and UV printing effects etc. Also it can do some special options, such as hot stamping hologram, inkjet serial number, barcode, QR code, ticket price, area code, seat number, time and other variable data.
Features
Ticket vice coupons or ticket middle part is embedded with RFID chip and antenna. RFID chip has the unique ID number in the world. ID number can not modify and copy because it was embedded/cured in the chip. The organizers can write their own password into chip so as to realize effective security.
Application
Concert, PARTY, train tickets, bus tickets, tourist attractions, sports stadiums, conference venues, cinemas, theaters, large exhibitions, etc.


RFID folding ticket   RFID folding ticket

RFID folding ticket   RFID folding ticket
