| home > product > RFID ticket > RFID conjoined ticket > ZT-K-TCK01 |
 |
| |
|
| |
RFID conjoined ticket ( Product model: ZT-K-TCK01) |
| |
|
| |
|
| |
|
| |
|
Ticket number |
ZT-K-TCK01 |
Ticket Category |
Conjoined type |
Ticket size |

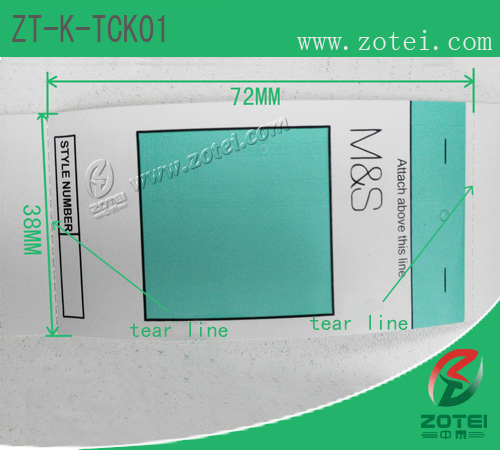

72* 38mm( (size can be customized) |
Ticket thickness |
0.30mm~0.45mm (thickness can be customized) |
Packaging material |
coated paper / thermal paper / PET / PVC |
Inlay material |
PET + AL |
Standard protocol |
ISO 14443A / ISO 15693 / EPC CLASS1 GEN2 / ISO 18000-6C |
Packaging Chip |
packing high-frequency chip:
ultralight / ultralight C / FM11RF08 / MIFARE Classic® 1K / FM11RF32 / MIFARE Classic® 4K / Ntag203 / Ntag213 / Ntag215 / Ntag216 / ICODE SLI / ICODE SLIX
packing Ultra-high -frequency chip:
Alien H3 / Alien H4 / Impinj M4 / Impinj M5 / UCODE G2XM / G2XL |
Operating frequency |
13.56MHz / 860-960MHz |
Operating Temperature |
-30℃~+50℃ |
Storage Temperature |
-40℃~+100℃ |
Erasing times |
≥ 100,000 times |
Data retention period |
≥ 10 years |
Packing |

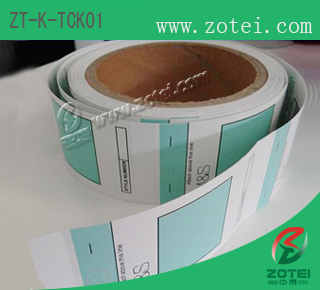

Continuous rolls or fan folded.
 |
Product description |
RFID conjoined tickets punched out of easy tear lines, it can be packed as a continuous roll packing or folded packing. |
Subsequent process |
Ticket surface can offset or silk srceen printing contents, cover film/overlay and UV printing effects etc. Also it can do some special options, such as hot stamping hologram, inkjet serial number, barcode, QR code, ticket price, area code, seat number, time and other variable data. |
Features |
Ticket vice coupons or ticket middle part is embedded with RFID chip and antenna. RFID chip has the unique ID number in the world. ID number can not modify and copy because it was embedded/cured in the chip. The organizers can write their own password into chip so as to realize effective security. |
Application |
Concert, PARTY, train tickets, bus tickets, tourist attractions, sports stadiums, conference venues, cinemas, theaters, large exhibitions, etc. |
|
| |
| |
|
| |
|
|
