| home > product > RFID tag > PCB RFID metal tag > ZT-XDU095 |
 |
| |
| |

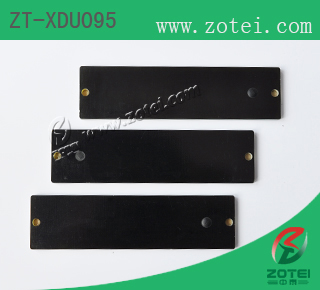

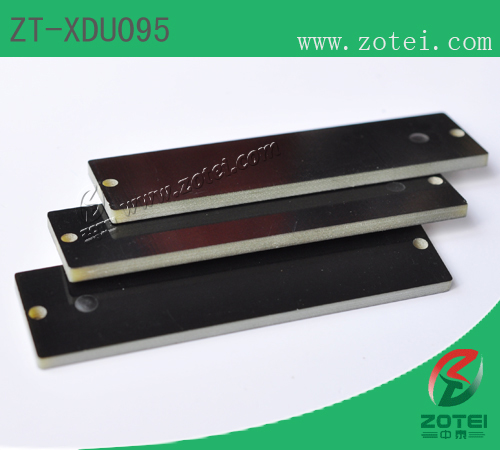

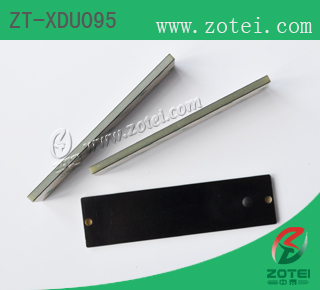

Product model: ZT-XDU095 |
| |
|
| |
|
Product type |
ZT-XDU095 |
Product Category |
PCB RFID metal tag |
Substrate Material |
PCB (FR4) |
| Antenna Material |
Etching copper foil |
| Installation method |
Application of gum 3M9495LE(-40~150℃)magnet |

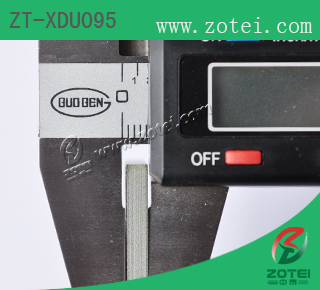

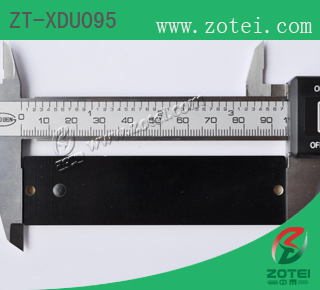

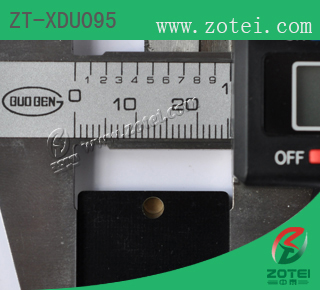

Size |
95* 25* 3.7 mm |
Weight |
25g |
Standard protocol |
ISO18000-6C(EPCGlobal Class1 Gen2) |
Chip Model |
Alien Higgs3(or by customized) |
Operating frequency |
902~928Mhz |
Working mode |
Read/Write |
| Memory |
EPC 96Bits; User 512Bits |
Read Distance |
Approx.2~6m(depend on the work environment and reader) |
Effective life |
≥ 10 years |
Effective frequency of use |
≥ 100,000 times |
| Operating temperature |
-40℃ to + 200℃ |
| Storage temperature |
-40℃ to + 85℃ |
| Installation method |
The tag can be attached using screws and rivets, or paste the tag directly to the metal surface（the tag with double-sided adhesive) |
Application |
Metal environment management, Asset management, Dangerous good management. |
|
| |
| |
|
| |
| |
| |
|
