| home > product > RFID tag > PCB RFID metal tag > ZT-WTG-3613 |
 |
| |
|
| |

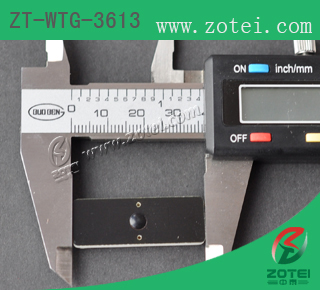

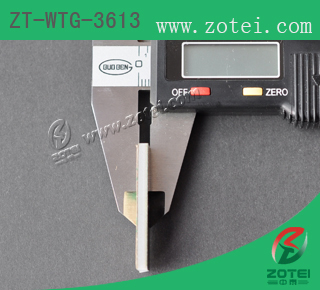

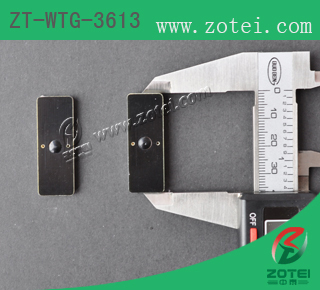

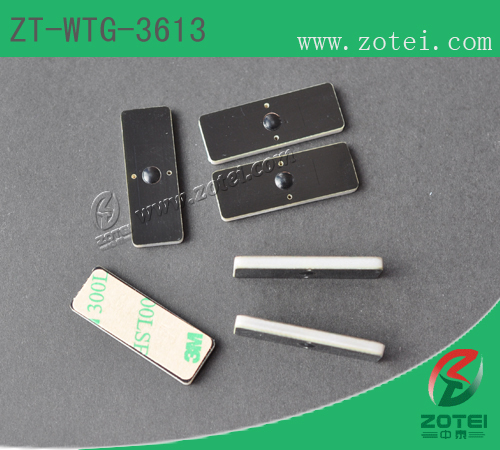

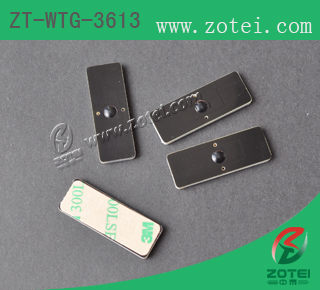

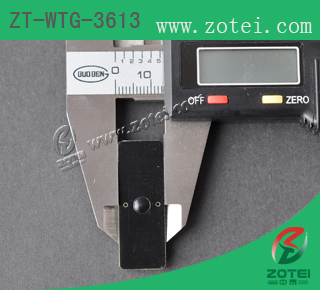

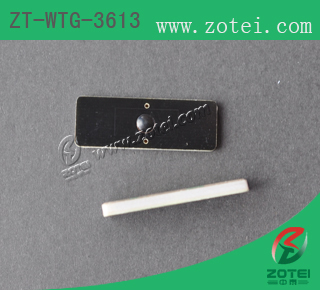

Product model:ZT-WTG-3613 ( UHF PCB RFID metal tag ) |
| |
|
| |
|
| |
|
Product type |
ZT-WTG-3613 |
Product Category |
PCB RFID metal tag |
| Introduction |
ZT-WTG-3613 is specifically designed for metal environment application and design of small metal electronic tag, follow the ISO18000-6C protocol standard. When in use, can use double-sided adhesive paste in object recognition, or the use of string tied to objects.
Is the label applied to asset management, goods back on the metal object recognition. |
Follow protocol |
ISO18000-6C(EPCGlobal Class1 Gen2) |
Working frequency |
920~925MHz |
Chip Model |
Alien H3 (Can be customized) |
Work mode |
Read/Write |
Polarization mode |
Linear polarization |
Storage capacity |
TID: 64bit, EPC: 96bit, Can increase Users: 512bit
|
Data rate |
Prior to：40-160kbits/s Reverse：40-640kbits/s
|
| Data protection |
Modify password, lock, destruction |
| Data retention |
More than 10 years, more than 100000 times the memory erasable |
| Working temperature |
|
| Storage temperature |
|
Read distance |
0~2 m (Fixed readers outside 12dBi antenna)
0~1.5 m (Fixed readers outside 7dBi antenna)
0~0.5 m (Hand held machine)
(Specific reading distance depends on the application environment, read / write device performance, output power and antenna gain) |
Tag size |
|
Tag weight |
3g |
Material |
PCB (FR4) |
| Protective performance |
IP67 |
| Installation method |
The tag is with double-sided adhesive, it can be pasted directly to the metal surface |
|
| |
| |
|
| |
|
