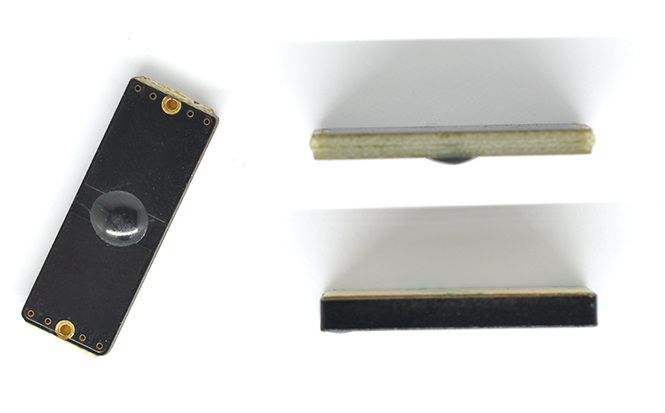

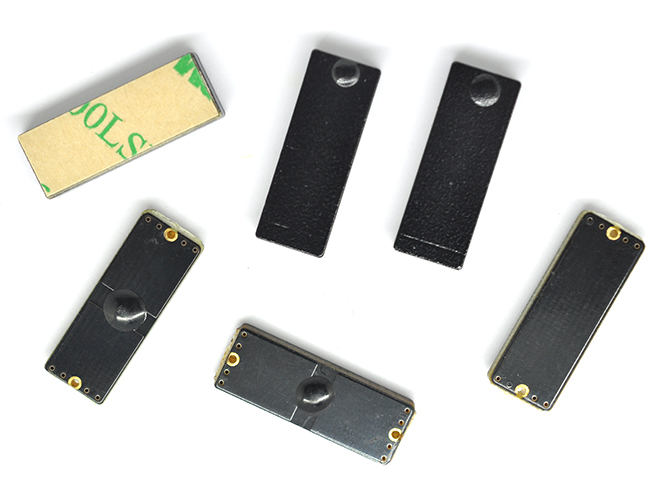

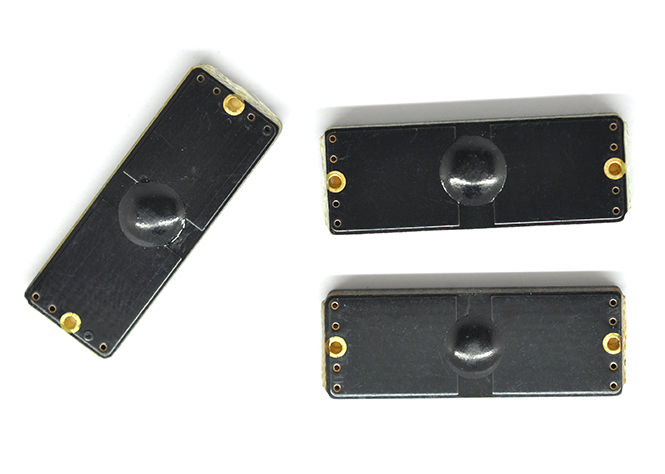

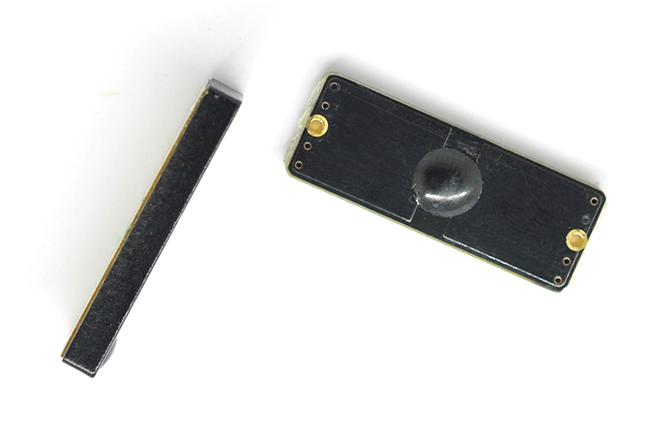

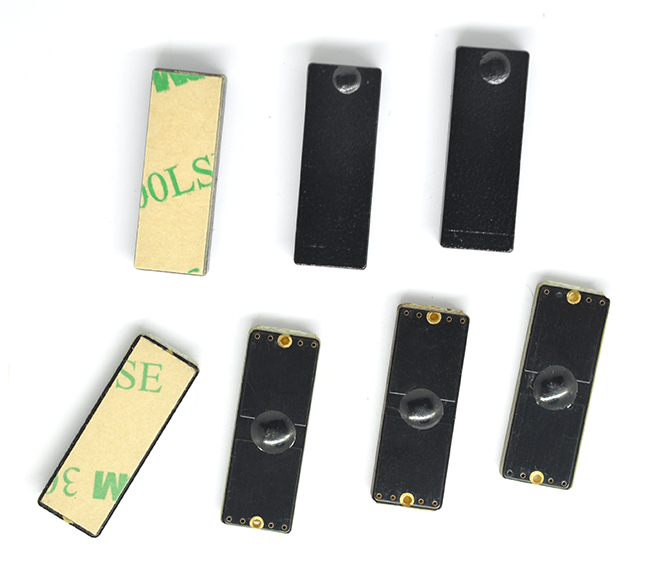

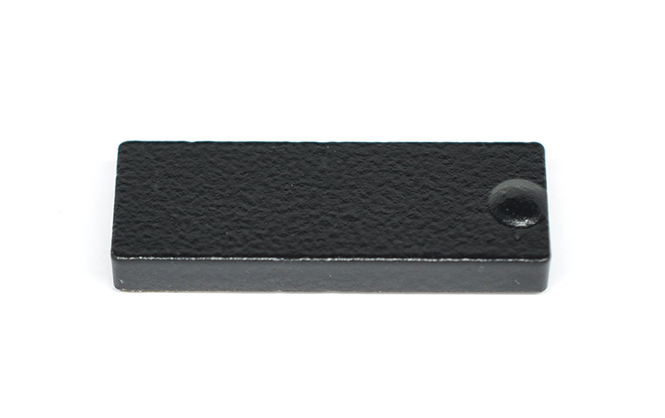

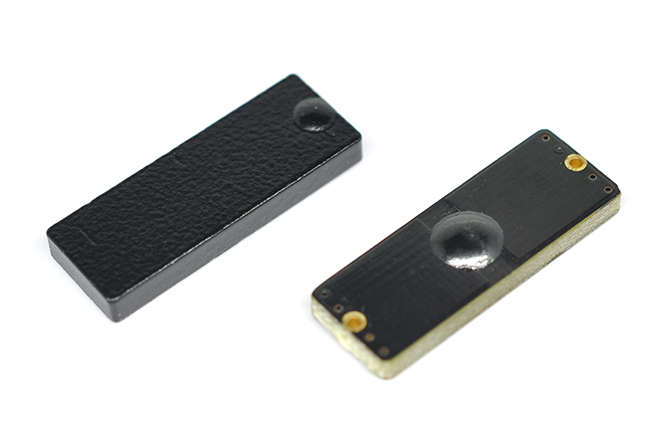

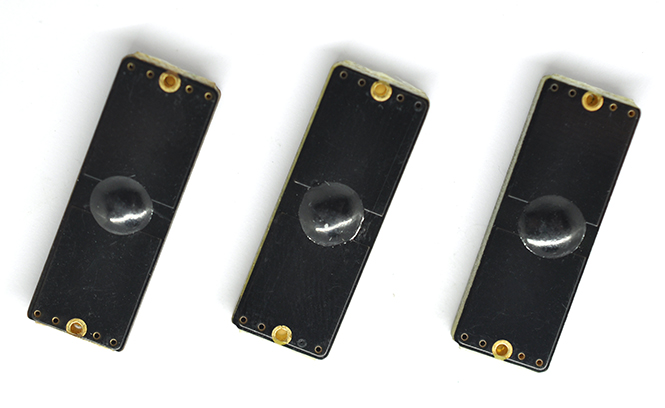

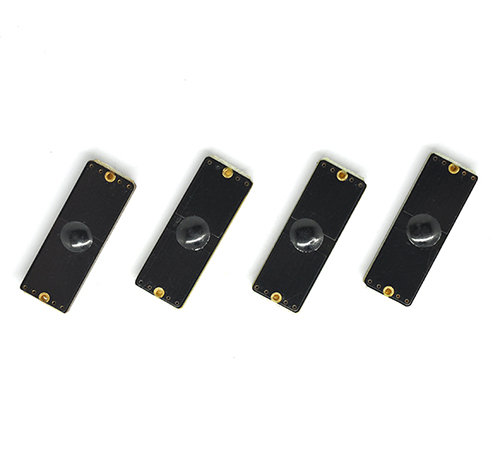

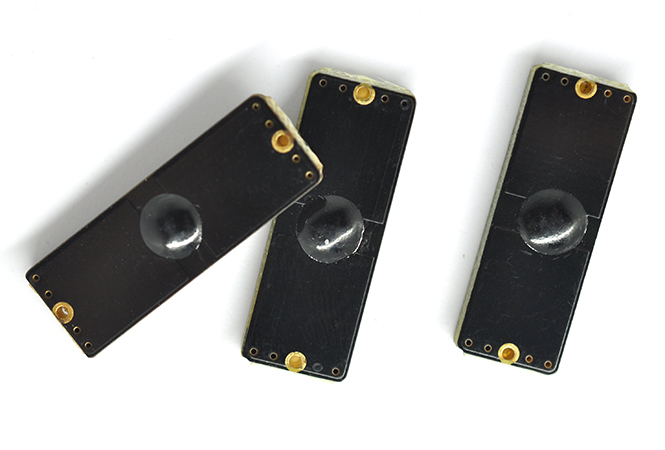

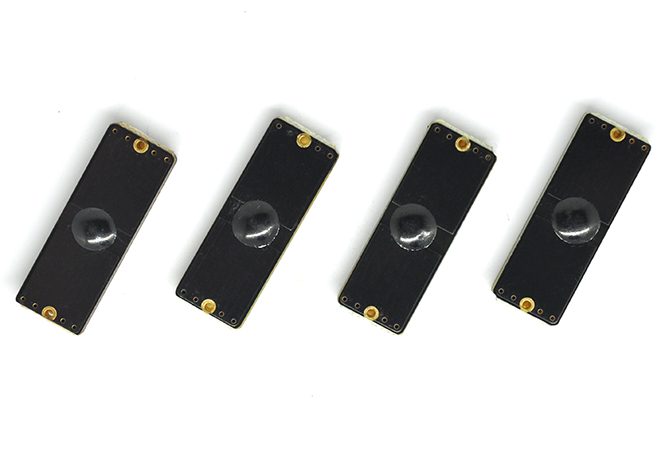

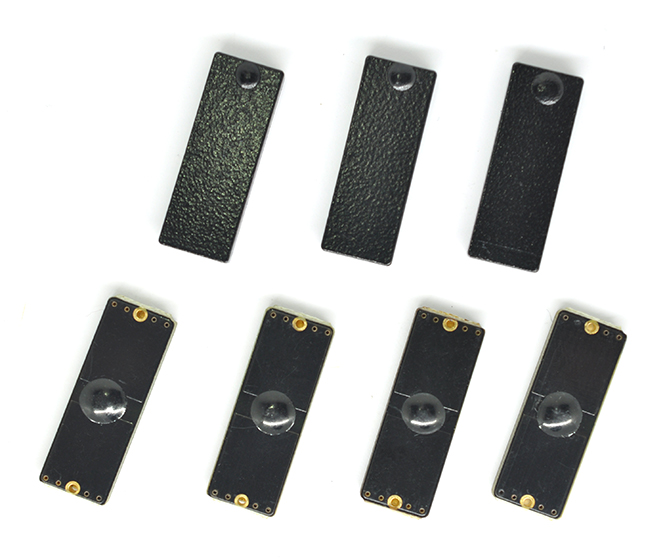

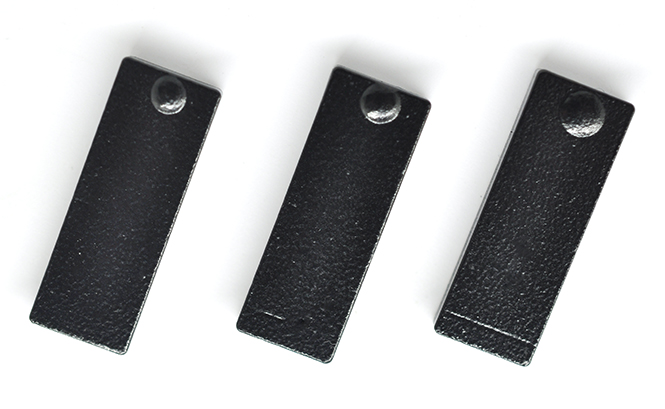

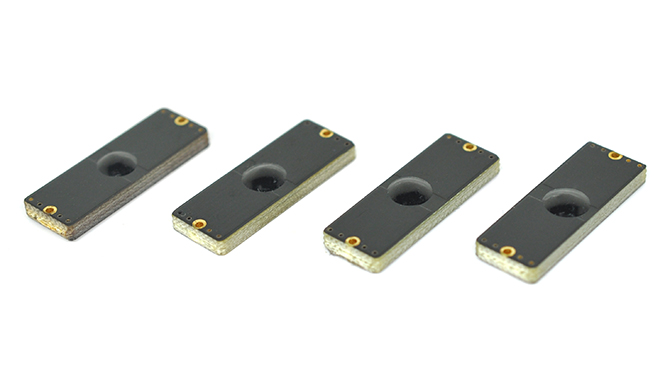

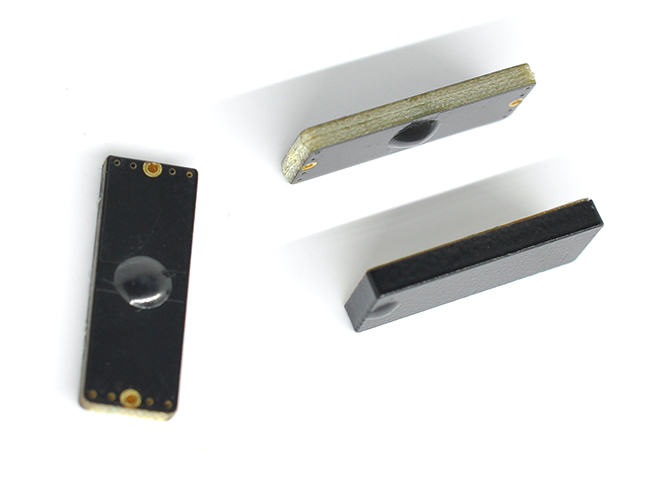

  Product model:ZT-JXT-P2509 ( UHF PCB RFID metal tag )



Product Type:ZT-JXT-P2509 ( UHF PCB RFID metal tag )

Product type
ZT-JXT-P2509
Product Category
PCB RFID metal tag
Introduction ZT-JXT-P2509 is specifically designed for metal environment application and design of small metal electronic tag, follow the ISO18000-6C protocol standard. When in use, can use double-sided adhesive paste in object recognition, or the use of string tied to objects.

Is the label applied to asset management, goods back on the metal object recognition.
Follow protocol
ISO18000-6C(EPCGlobal Class1 Gen2)
Working frequency
902~928 MHz / 865~868MHz
Chip Model
Alien H3 (Can be customized)
Work mode
Read/Write
Polarization mode
Linear polarization
Storage capacity
TID: 64bit, EPC: 96bit, Can increase Users: 512bit
Data rate
Prior to:40-160kbits/s Reverse:40-640kbits/s
Data protection Modify password, lock, destruction
Data retention More than 10 years, more than 100000 times the memory erasable
Working temperature
-20℃~+70℃
Storage temperature
-40℃~+85℃
Read distance
0~2 m (Fixed readers outside 12dBi antenna)
0~1.5 m (Fixed readers outside 7dBi antenna)
0~0.5 m (Hand held machine)
(Specific reading distance depends on the application environment, read / write device performance, output power and antenna gain)

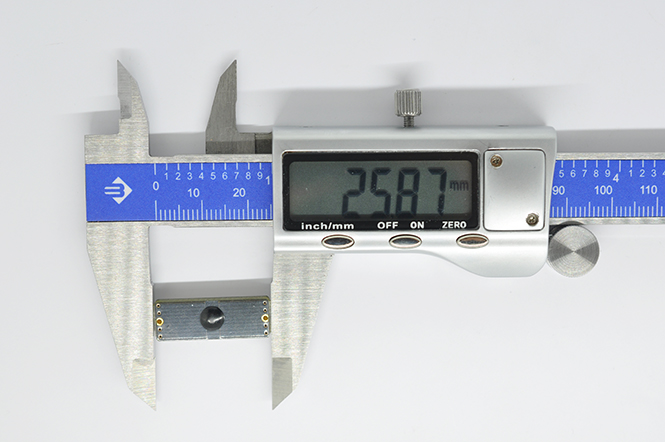

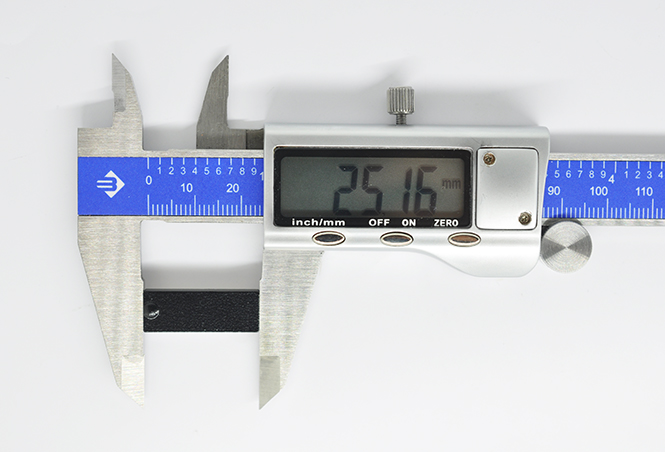

Tag size
25.2*9.2*3.4mm
Tag weight
3g
Material
PCB (FR4)
Protective performance IP67

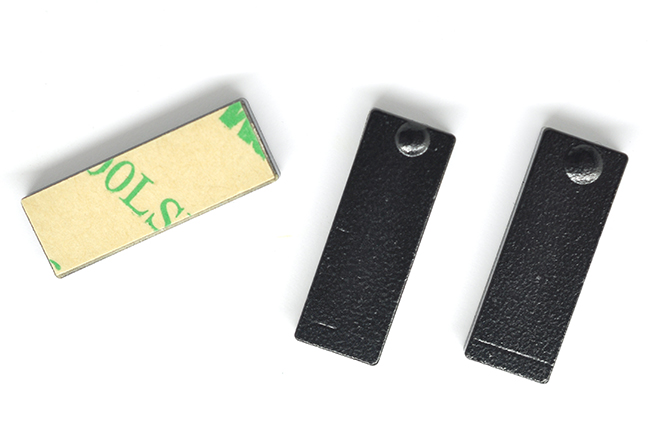

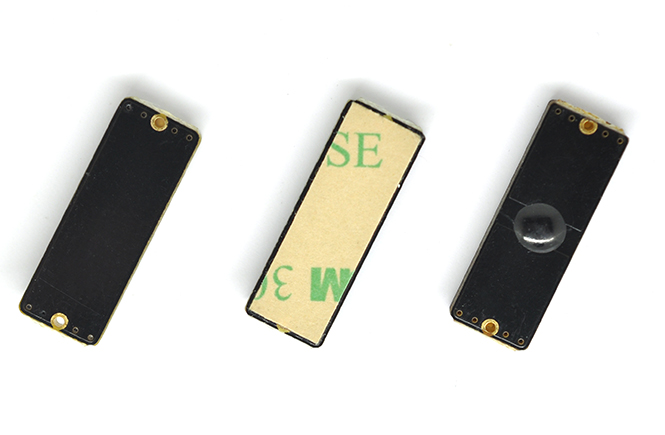

Installation method The tag is with double-sided adhesive, it can be pasted directly to the metal surface
