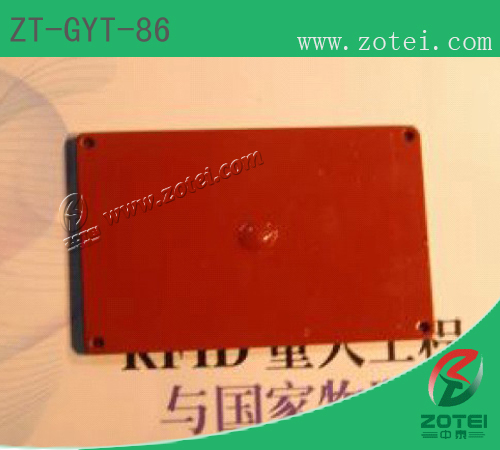

  Product model: ZT-GYT-86 (UHF PCB RFID metal tag)


UHF PCB RFID metal tag:ZT-GYT-86

Product type
ZT-GYT-86
Product Category
PCB RFID metal tag
Introduction

ZT-GYT-86 is a truly passive UHF radio frequency identification(RFID) transponder that delivers superior performance on a variety of surfaces including plastic, wood and metal. The tag, available in both EPC Global Class 1, Generation 2 (Gen 2) and ISO 18000-6C protocols, combines an impressive range with a rugged yet compact package designed for harsh industrial applications and temperatures ranging from -40℃ to +80℃. Resistant to multiple cycles of one hour at the temperature of 240℃.

ZT-GYT-86 has a wide band antenna design, which has excellent UHF range performance. The EPC Global Gen 2 version of the UHF Rigid Tag has 96 bit of EPC memory and 512 bits user memory. Additionally, the tag has a robust physical package and is designed for exposure to substances and harsh chemicals representative of typical industrial applications, including machining oil, gasoline, motor oil, methyl ethyl ketone (MEK), isopropyl alcohol, methyl alcohol,mineral spirits, acetone, and kerosene.


Key Benefits
1. Rugged encapsulation for harsh environments
2. Apply to the EPC Gen2 and ISO18000-6 protocol
3. Used in the metal surface with ultra-high performance and can be applied to other surfaces
4. Reusable for lower cost per use
5. Long-term work at -40℃ to +80 ℃ temperature
6. Resistant to multiple cycles of one hour at the temperature of 240℃.
7. Ultra-long reading distance
Key Features
1. 512-bit user memory
2. 96-bit of EPC memory
3. 64-bit tag identifier (TID) including 32-bit unique serial number
4. Memory read protection
5. EAS (Electronic Article Surveillance) command
6. Calibrate command
7. 32-bit kill password to permanently disable the tag
8. 32-bit access password to allow a transition into the secured transmission state
9. Reliable operation of multiple tags due to advanced anti-collision
10. Forward link: 40-160 kbit/s
11. Return link: 40-640 kbit/s
12. IP rating:IP67
13. Frequency Range: 920 ~ 925MHz (available upon request customized)
14. Application Temperature -40℃ to +80℃ (Long-term use); Resistant to multiple cycles of one hour at the temperature of 240℃.
15. Read range: > 10M (Reader:1w 6db)
Note : Actual range performance may vary depending on power output, temperature and other environmental factors.
Chemical Resistance
1. Machining oil and fluid
2. Gasoline
3. Motor oil
4. Methyl Ethyl Ketone (MEK)
5. Isopropyl alcohol
6. Methyl alcohol
7. Mineral spirits
8. Acetone
9. Kerosene
Typical applications include
1. Tractors and trailers
2. Reusable plastic containers
3. Metal cages
4. Wood and plastic pallets
5. Unit loading devices
Installation method
The tag can be attached using screws,rivets, double-sided adhesive strips, or other appropriate methods.

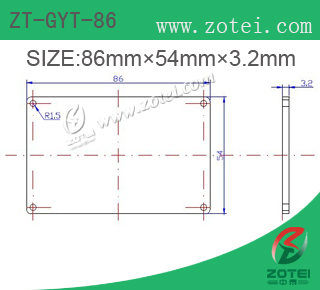

Size
86* 54* 3.2 mm
Material
PCB (FR4)
