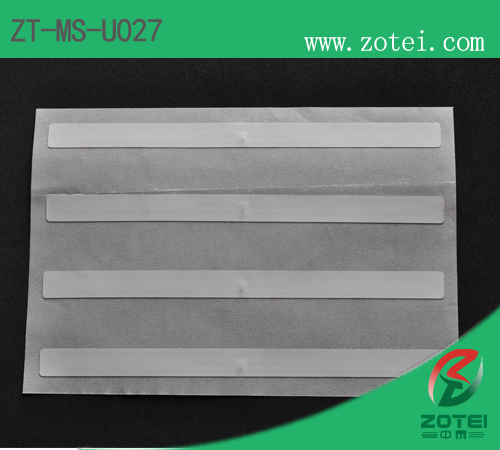

Product name

book RFID label

Product model

ZT-MS-U027

Product usage

Mainly used in book management, can also be used for other items tracking management.

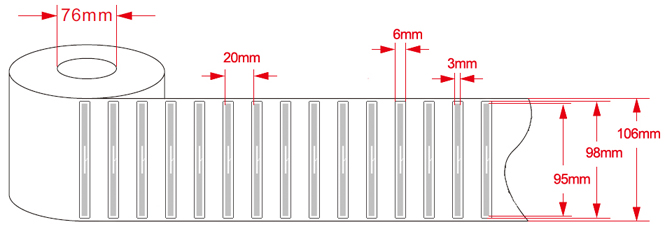

label size

98*6mm

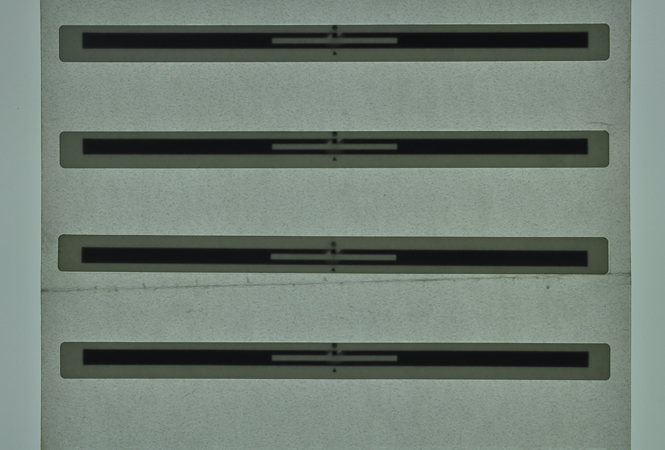

antenna size

95*3mm

Antenna Material

Aluminum Etching

Chip

Alien H3 / Alien H4

Frequency

860-960 MHz

RF standard

ISO18000-6C

label surface material

art paper, PET, PP synthetic paper, thermal paper can be selected.

Operating temperature
/ humidity

-40~70°C / 20% ~ 90% RH

Storage temperature
/ humidity

-20~50°C / 20% ~ 90% RH (no condensation)

Recommended storage
temperature / humidity

20~30°C / 50%

packaging

Quantity per roll: Customizable; Use a stabilizer to protect the IC and the antenna; Packed in pearl cotton and anti-static plastic bags, waterproof, anti-collision, anti-static; Use standard carton packaging.

Use warning

Do not use if the black dot is marked as defective. Pay attention to waterproof when handling and using. Do not violently impact, squeeze or bend.
