| home > product > RFID tag > Common RFID metal tag > ZT-JXX-MET02 |
 |
| |
| |

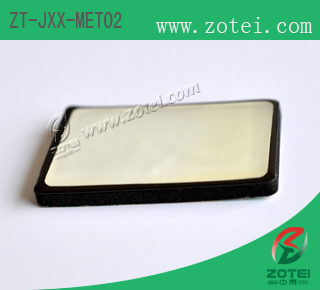

Product model: ZT-JXX-MET02 (Anti-metal RFID tag) |
| |
|
| |
|
Product type |
ZT-JXX-MET02 |
Product name |
HF Epoxy Anti-metal RFID tag |
Product Category |
Common RFID metal tag |
Material |
PVC (or PET); Epoxy; anti-metal materials; Self-adhesive |
color |
white (can print content on the surface) |
Size |

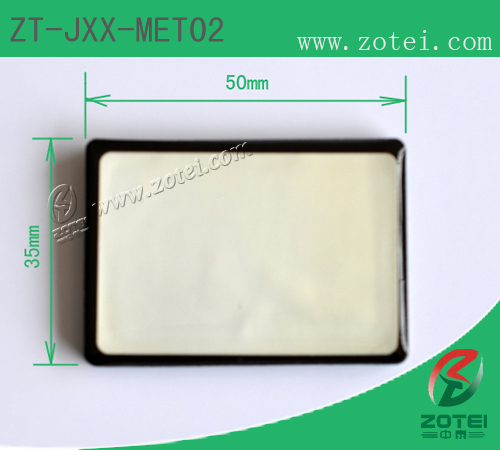

50 × 35 × 5.0 mm (customizable) |
Standard protocol |
ISO15693; ISO14333A |
Chip Model |
IC Available at 13.56MHz nominal
FM11RF08,MIFARE Classic® 1K,MIFARE Classic® 4K,Ultralight,MIFARE® Desfire, I-CODE-SLI, I-CODE-1,I-CODE-SLI-S, Ti2048, MIFARE® DESFire... |
Frequency |
13.56Mhz |
Operating Temperature |
-33℃ to + 75℃ |
Read Distance |
1-5cm |
Read speed |
≤ 0.05S |
Effective life |
≥10 years |
Effective frequency of use |
≥ 100,000 times |
| Installation method |

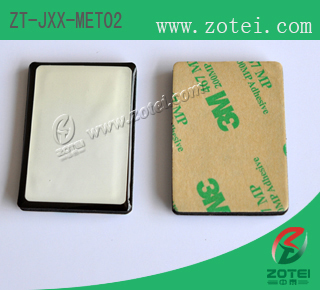

The tag is with double-sided adhesive, it can be pasted directly to the metal surface. |
Application |
Application:Metal instrument Asset Management;
Function:stick to mental surface |
|
| |
| |
|
| |
| |
| |
|
