Product type |
ZT-WTG-4534 |
Product Category |
ABS RFID metal tag |
| Introduction |
metal and liquid is affecting the label properties of the two major obstacles, the common tag is attached to the metal surface, the read performance will be greatly reduced, to the tag antenna is specially designed to raise their reading performance.
ZT-WTG-4534 is specifically designed for metal environment designed for the application of high performance mini metal electronic tag, follow the ISO18000-6C protocol. When in use, can use double-sided adhesive paste in object recognition, or the use of screw fixation on the object, but also can be hung on the surface of the metal object.
The label is mainly applied in asset management, tracking, objects back on metal object recognition. |
Material |
Within a ceramic, shell is PVC |
Follow protocol |
ISO18000-6C(EPCGlobal Class1 Gen2) |
Working frequency |
920~925MHz |
Chip Model |
Alien H3 (Can be customized) |
Work mode |
Read/Write |
Polarization mode |
Linear polarization |
Storage capacity |
EPC：96 bits，(Can increase user memory ：512 bits)
|
Data rate |
Prior to：40-160kbits/s Reverse：40-640kbits/s
|
| Data protection |
Modify password, lock, destruction |
| Data retention |
More than 10 years, more than 100000 times the memory erasable |
| Storage temperature |
|
| Working temperature |
-40℃~+85℃ |
Read distance |
0~6 m (Fixed readers outside 12dBi antenna)
0~4 m (Fixed readers outside 7dBi antenna)
0~1.5 m (Hand held machine)
(Specific reading distance depends on the application environment, read / write device performance, output power and antenna gain) |

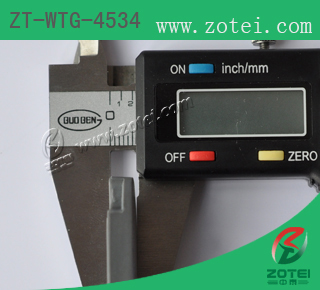

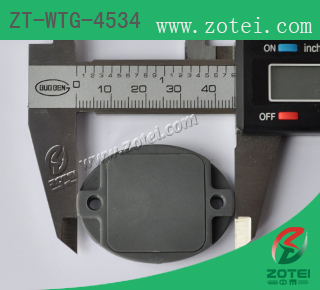

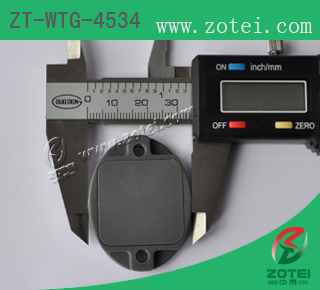

Label size |
|
Tag weight |
10g |
| Protective performance |
IP67 |
| Matters needing attention |
Please avoid pounding and high falls |
