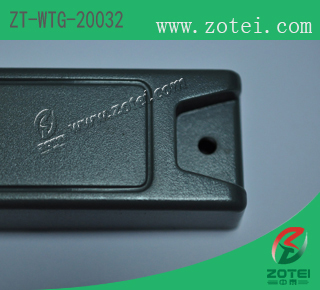

  Product model: ZT-WTG-20032 (UHF ABS RFID metal tag)



Product Type: ZT-WTG-20032 ( UHF ABS RFID metal tag )

Product type
ZT-WTG-20032
Product Category
ABS RFID metal tag
Introduction The label is designed for metal environment application designed for long distance and high resistance metal electronic tag, follow the ISO18000-6C protocol standard. When in use, can use double-sided adhesive paste in object recognition, or the use of screw fixation in object, also can use the magnet adsorption on metal devices, general handset read at a distance of 1to 6 meters.

The label is mainly applied to asset management, tracking, objects back on metal object recognition.
Follow protocol
ISO18000-6 C (EPC), optional ISO18000-6 B
Working frequency
920~925MHz
Chip Model
Alien H3 (Can be customized)
Work mode
Read/Write
Polarization mode
Linear polarization
Storage capacity
TID:64,EPC:96 bits,Can increase Users:512
Data rate
Prior to:40-160kbits/s Reverse:40-640kbits/s
Data protection Modify password, lock, destruction
Data retention More than 10 years, more than 100000 times the memory erasable
Working temperature
-20℃~+70℃
Storage temperature
-40℃~+85℃
Read distance
0~30 m (Fixed readers outside 12dBi antenna)
0~20 m (Fixed readers outside 7dBi antenna)
0~10 m (Hand held machine)
(Specific reading distance depends on the application environment, read / write device performance, output power and antenna gain)
Label size
200×32×22 mm
Tag weight
55g
Protective performance IP67
Installation method The tag can be attached using screws and rivets, or paste the tag directly to the metal surface(the tag with double-sided adhesive)
