| home > product > RFID tag > ABS RFID metal tag > ZT-DHM-102 |
 |
| |
|
| |

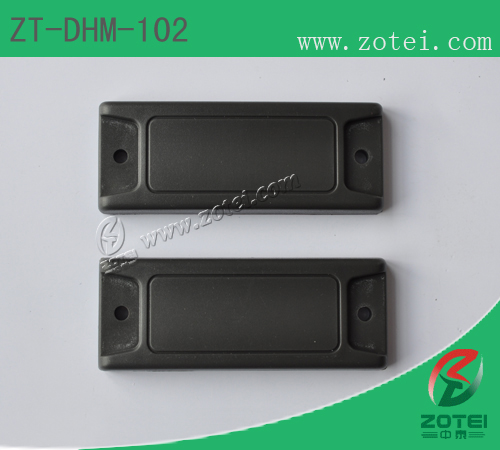

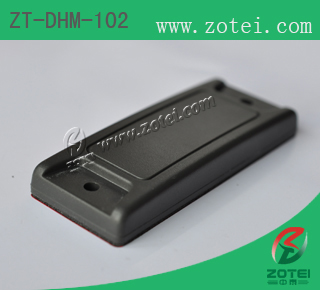

Product model: ZT-DHM-102(UHF ABS RFID metal tag) |
| |
|
| |
|
| |
|
Product type |
ZT-DHM-102 |
Product Category |
ABS RFID metal tag |
Introduction |
The high temperature engineering plastics and NXP G2XM chip assembly, belong to the product of the UHF band passive RFID tags, according to customer requirements, the package for the HF bands other types of electronic tags. |
Material |
ABS |
Size |

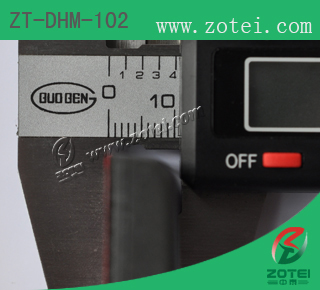

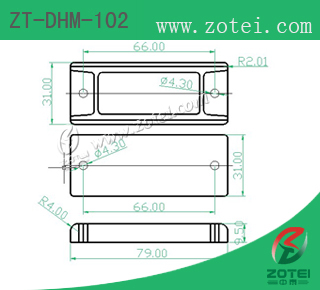

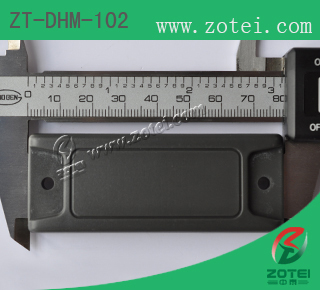

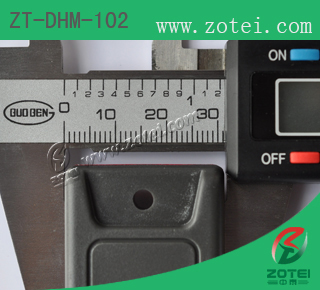

79* 31* 9.5mm (with 4mm hole on each end) |
Weight |
25g |
| Color |
Dark grey |
Standard protocol |
ISO18000-6C(EPC Global Class1 Gen2) |
Chip Model |
UHF Chip |
Frequency |
915MHz (868-960MHz frequency can be tailor-made) |
Data rate |
Forward: 40 ~ 160Kbps, return: 40 ~ 640Kbps |
Read Distance |
≥ 5.5M (use 9dbi Antenna) |
| UID |
64 bits |
| EPC Size |
96 bits, extensible to 240 Bits |
| User Memory |
512 Bits |
| Operating temperature |
-20℃ to +60℃ |
Storage Temperature |
-20℃ to +80℃ |
Effective life |
≥10 years |
Effective frequency of use |
≥ 100,000 times |
Application |
This product is designed for the metal media installation, the product has been preset at the bottom of the shielding medium, can also be used in other media, such as plastic, wood and other occasions. |
|
| |
| |
|
|
