  Impinj H42 sticky RFID label / inlay



  RFID label / inlay price
  Download details of UHF RFID tag

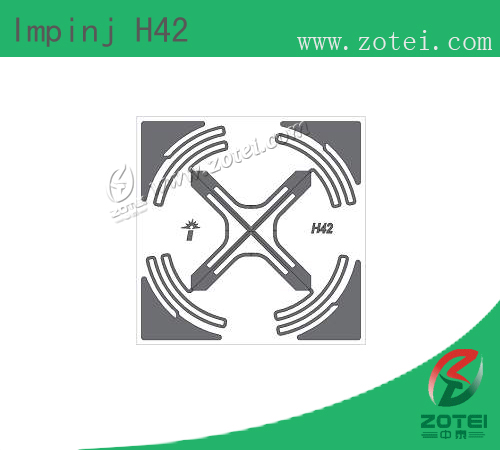

Impinj H42 Inlay

Product type
Impinj H42 sticky RFID label/inlay
Description
> Two independent antenna ports for high performance and well-round reading

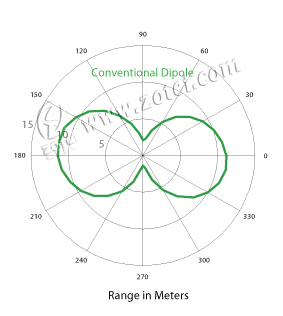

> True 3D antenna technology enabling readers to read from different angles, thus significantly improving readability rate  Dipole Antenna
> Valid communication distance of over 3 meters (in relation to working environment)
Impinj h42 inlayimpinj h42 inlay
              95 mm x 8 mm  Dipole Antenna                        44 mm x 44 mm Antenna
 Performance Index :
Supporting Agreement
ISO/IEC 18000-6C (EPC GEN2)
Operating Frequency 860~960MHz
Operating Mode Broad Spectrum Frequency Hopping (FHSS)
Chip Monza 4
Antenna Material Aluminum
Operating Temperature -20℃~+80℃
Antenna Dimension 44 mm x 44 mm
Finished label :
UHF RFID INLAY

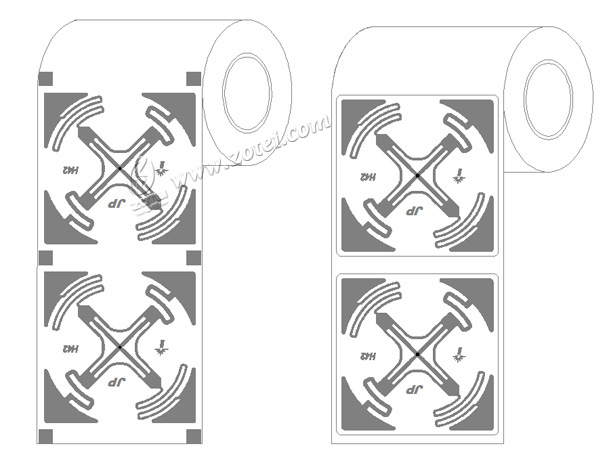

Unwinding direction :
UHF RFID INLAY

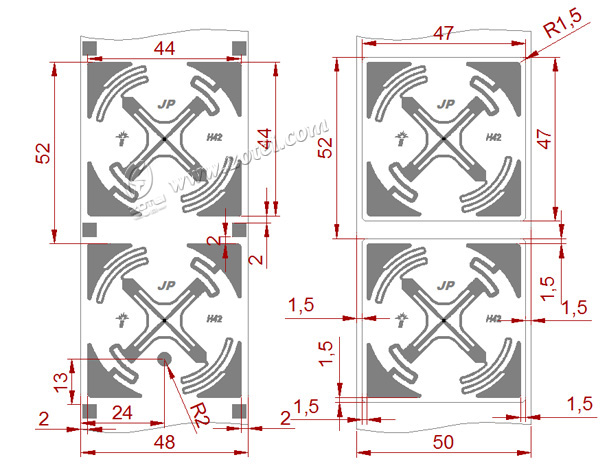

Size :
UHF RFID INLAY
