Product name

RFID label / wet inlay / dry inlay

Product model

ZT-MS-H004

Product usage

Item identification and tracing, warehousing management, logistics management, production line management, etc.

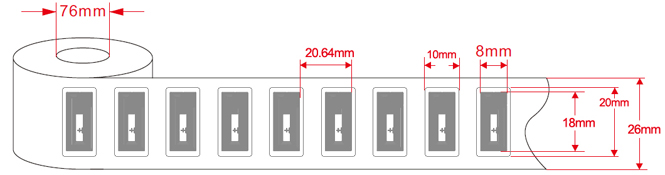

label size

20*10mm

antenna size

18*8mm

Antenna Material

Aluminum Etching

Chip

Impinj M4E

Frequency

860-960 MHz

RF standard

ISO18000-6C

label surface material

art paper, PET, PP synthetic paper, thermal paper can be selected.

Operating temperature
  / humidity

-40~70°C / 20% ~ 90% RH

Storage temperature
  / humidity

-20~50°C / 20% ~ 90% RH (no condensation)

Recommended storage temperature / humidity

20~30°C / 50%

packaging

Quantity per roll: Customizable; Use a stabilizer to protect the IC and the antenna; Packed in pearl cotton and anti-static plastic bags, waterproof, anti-collision, anti-static; Use standard carton packaging.

Use warning

Do not use if the black dot is marked as defective. Pay attention to waterproof when handling and using. Do not violently impact, squeeze or bend.
