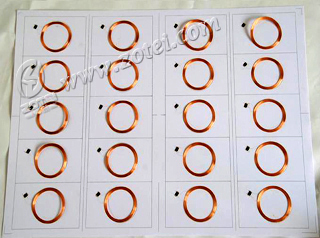

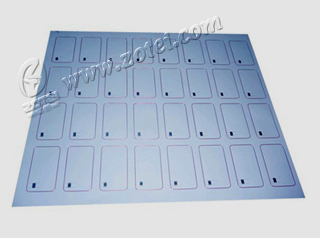

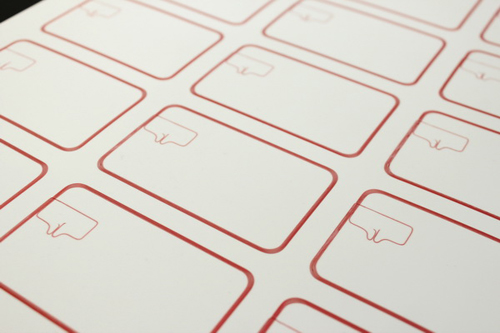

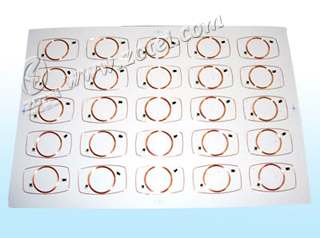

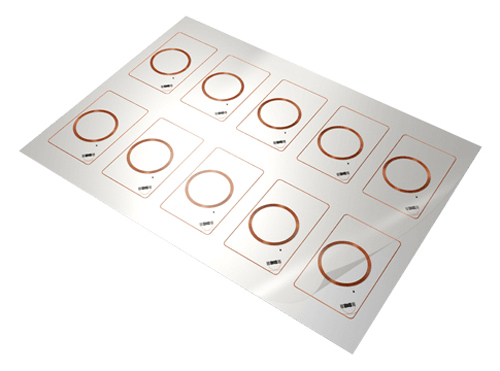

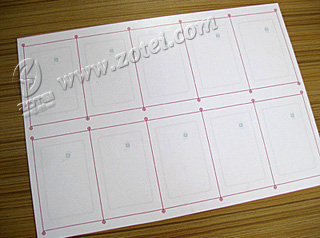

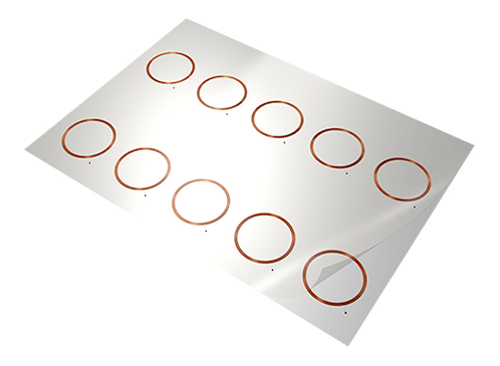

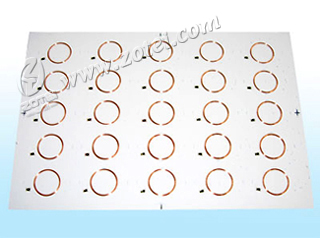

Prelaminated inlays (prelams) are suitable for use in production of ISO standard cards. Our prelams are very robust and have unequaled torsion / bending characteristics, extreme durability and optimized read / write performance. The prelaminated inlays have a completely flat finish and bring numerous benefits to card manufacturers.

As core part of RFID card, we provide high-quality RFID inlay which they are suitable to ISO standard cards and made into different thickness and various shape for option. We have advanced ultrasonic technology, and aluminum(AL) etching techniques, so the quality of our products is not only stable also durable and better Reading and writing performance. What’s more,the products with the AL etching that can be extreme thin, suitable for special needs.

> IC: EM4200, TK4100, NXP MIFARE Classic 1K, NXP MIFARE Classic® 4K, MIFARE® Ultralight, MIFARE® DESFire, ICODE SLI, T5577compatible chip, MIFARE compatible chip, HID compatible chip...
> Thickness:0.30~0.60mm
> Operating Frequency: LF 125KHz, HF 13.56MHz, UHF GLOBAL 860MHz-960MHz
> Standard: ISO14443, ISO15693, ISO 18000
> Dimension: 210 x 297mm, 310mm x 468mm, 420 x 520mm
> Layout: 3x7, 4x5, 5x5, 3x8, 4x8, 4x6, 2x5, 2x4, or any customization
> Antenna: AL Etching,Pre-winding Copper coil, Altrasonic Embeding
> Bonding: Wire Bonding, FLIP chip, MOA2
> Working temperature: 25℃ ~ +55℃
> Store temperature: -25℃ ~ +65℃
> Application: for contactless card lamination
> Material: PVC or PET material
