FM11RF08 is the contactless card IC according to ISO14443 Type A development by Shanghai FuDan Microelectronics Co., Ltd. This device has 1K×8bits EEPROM organization. The maximum communication rage between the reader antenna and contactless card is approximately 10cm.

FM11RF08 also has a very high security performance with the encryption and communication circuit, and is a true multi-application smart card with the functionality of a processor card realized with hardware logic. So FM11RF08 can be especially tailored to meet the requirements of a payment card which can be used for ticketing systems in public transport and comparable application.

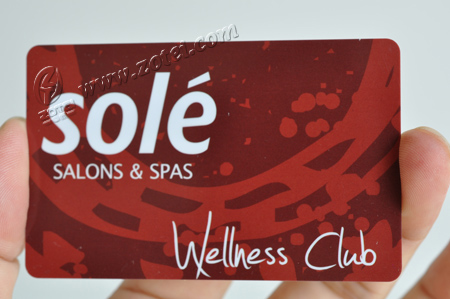

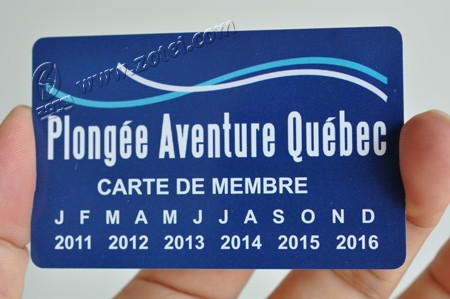

The Contactless smart card contains three components: FM11RF08 chip, antenna and the card base with PVC(or PET) material. No battery is needed. When the chip is positioned in proxmity of the coupling device antenna, the high speed RF communication interface allows transmitting data with 106-Kbit/s.
